An educational researcher conducted a study to investigate the relationship between the number of hours students spend in part-time employment per week and their self-reported academic confidence.
The researcher selected an opportunity sample of 10 students aged 17 from a local college. Each student reported the average number of hours they spent working in a part-time job each week. Each student also completed an academic confidence questionnaire, which provided a score out of 40 (where a lower score indicates low academic confidence and a higher score indicates high academic confidence).
The raw data collected in the study are shown in Table 1 below.
Table 1 The weekly hours of part-time work and academic confidence scores of 10 college students
| Student | Weekly hours of part-time work | Academic confidence score (out of 40) |
|---|---|---|
| 1 | 18 | 15 |
| 2 | 22 | 8 |
| 3 | 4 | 36 |
| 4 | 25 | 5 |
| 5 | 12 | 24 |
| 6 | 2 | 38 |
| 7 | 15 | 20 |
| 8 | 10 | 28 |
| 9 | 20 | 12 |
| 10 | 8 | 32 |

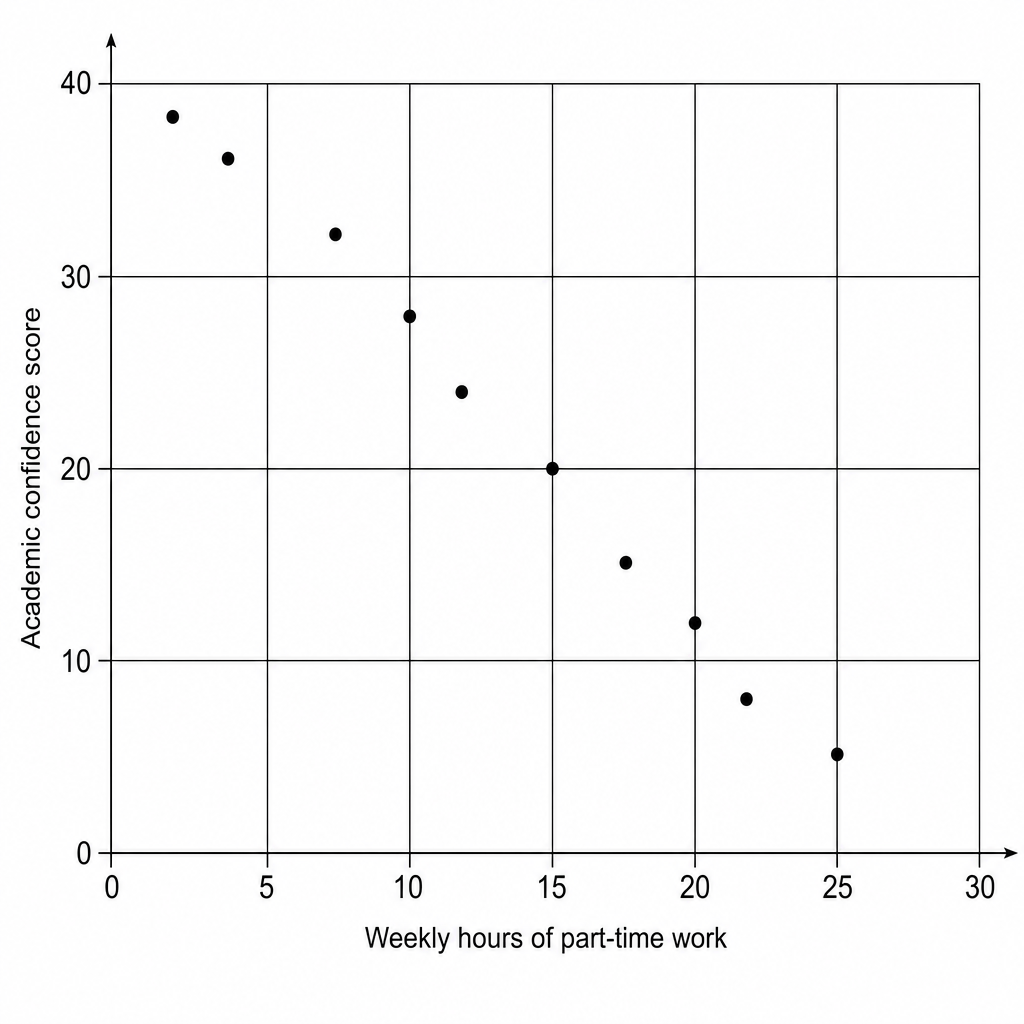

Using the data given in Table 1, sketch an appropriate graphical display of the data and label the axes. You do not need to provide a title.
