Question 28
Medium

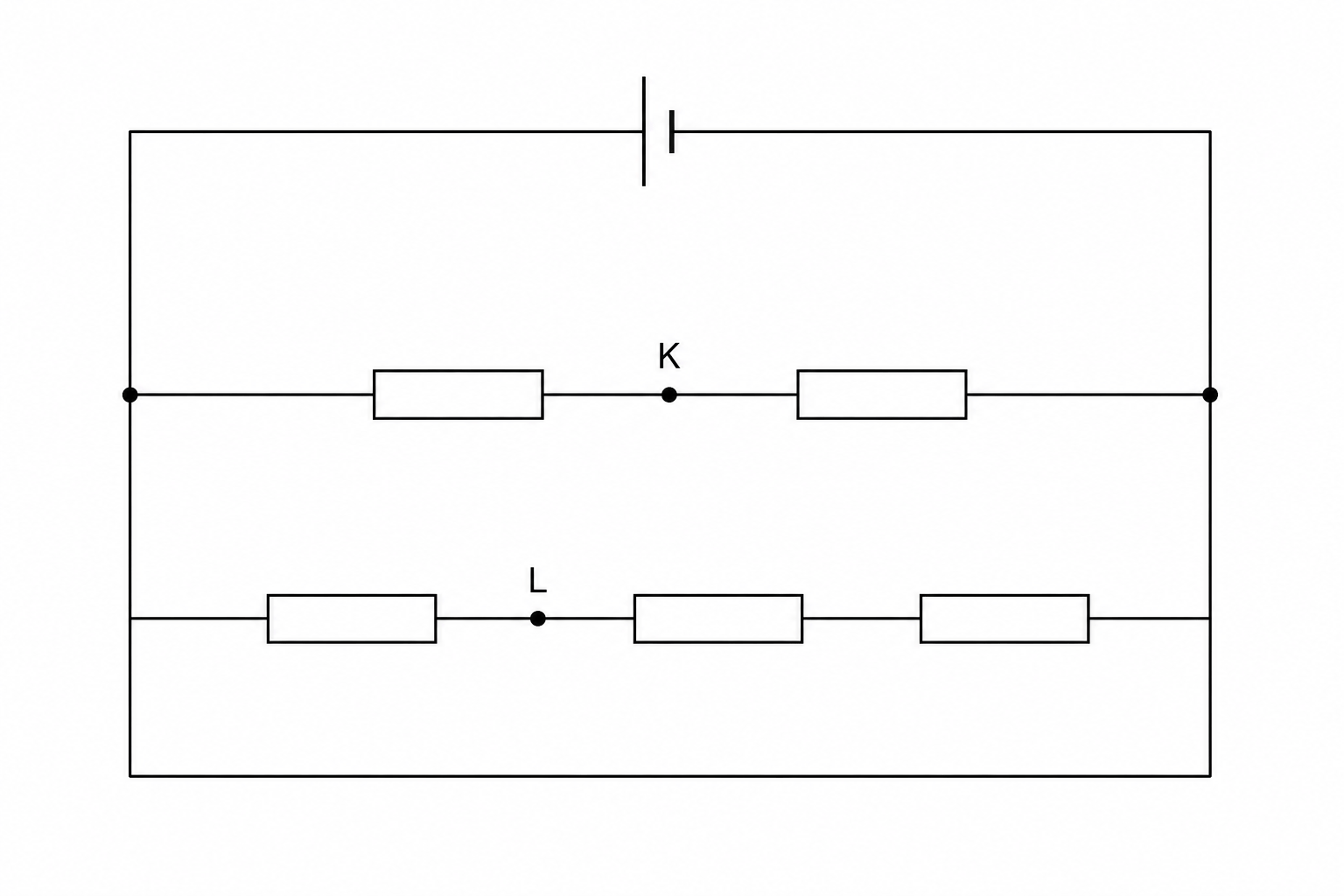

A student constructs a circuit using five identical resistors connected to a constant voltage source, as shown in the diagram below.

Circuit diagram with two parallel branches

An ammeter placed at point K\text{K}K measures a current of 3.0 A. What is the current measured at point L\text{L}L?

1.5 A1.5\text{ A}1.5 A

2.0 A2.0\text{ A}2.0 A

3.0 A3.0\text{ A}3.0 A

4.5 A4.5\text{ A}4.5 A
