Question 3

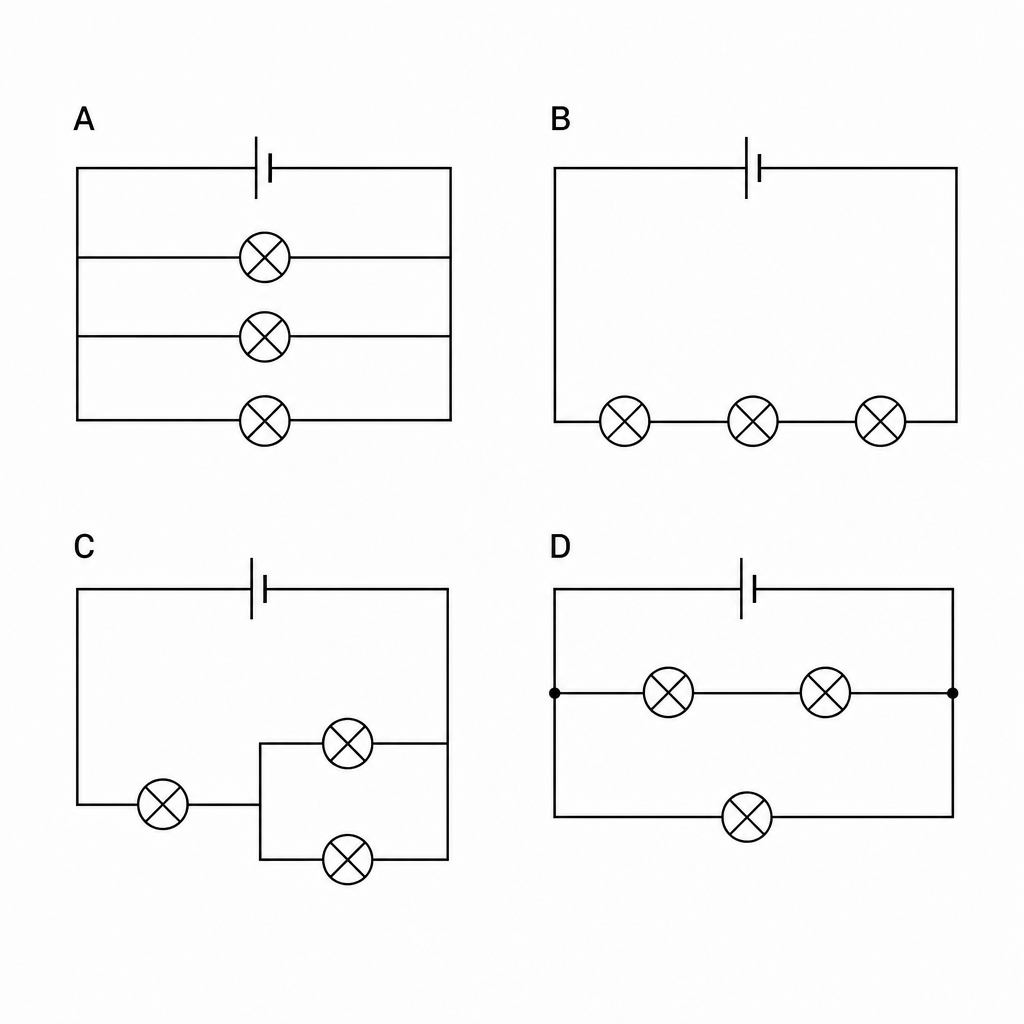

An electrical circuit contains a heating element, component H1\text{H}_1H1​.

a.

State the name of the measuring instrument used to measure the potential difference across component H1\text{H}_1H1​, and state whether this instrument is connected in series or in parallel with component H1\text{H}_1H1​.

[2]
b.

Component H1\text{H}_1H1​ has a resistance of 32.5 Ω32.5\ \Omega32.5 Ω.

The potential difference across component H1\text{H}_1H1​ is 13.0 V13.0\text{ V}13.0 V.

Calculate the current flowing through component H1\text{H}_1H1​.

[2]
