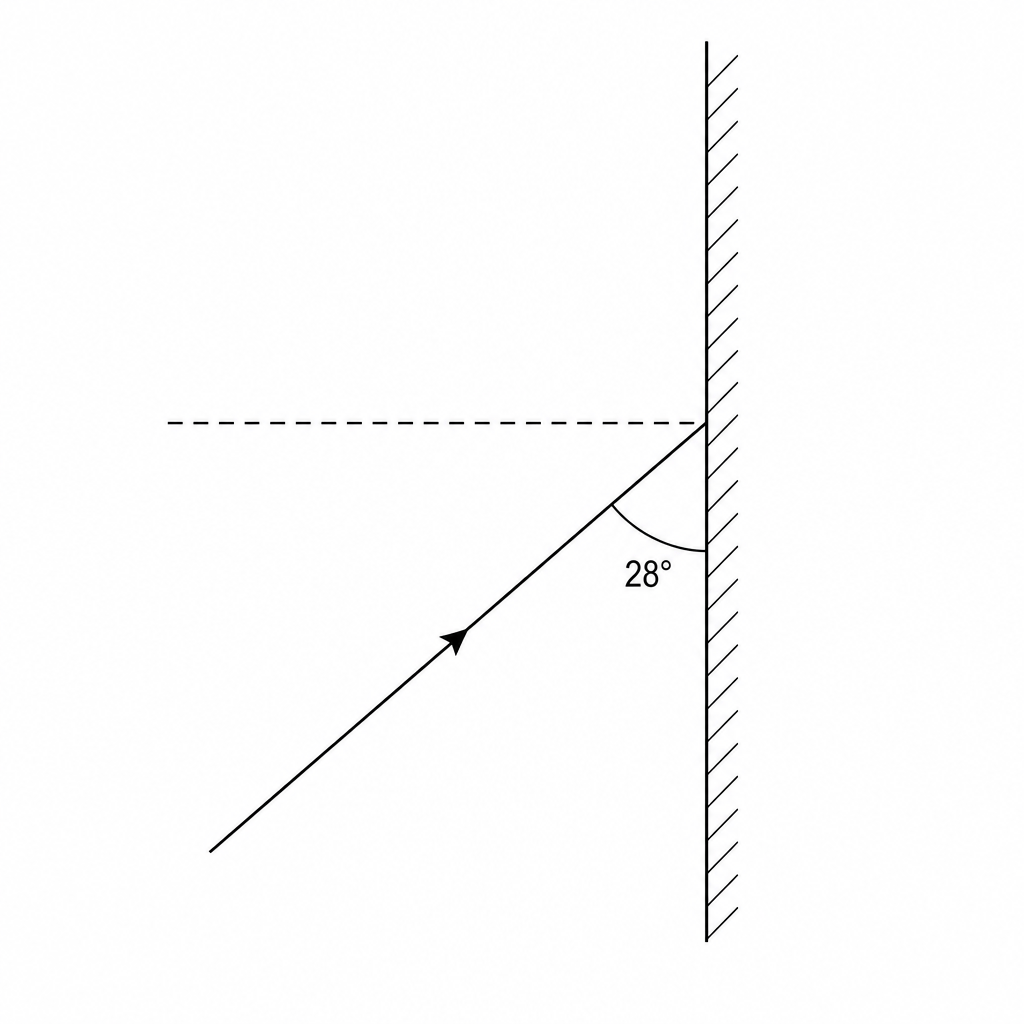

Figure 1 shows a ray of light from an underwater sensor directed towards a vertical plane mirror mounted on an autonomous research vehicle.

Figure 1

On Figure 1, complete the diagram by drawing the path of the ray of light after it reflects from the mirror, and determine the angle of reflection.

[2]
