Question 1

A researcher investigates how light refracts as it passes from air into a synthetic diamond crystal block.

They record the angle of incidence, $θ1\theta_1$ , and the angle of refraction, $θ2\theta_2$ , for several different angles.

Diamond Refraction Data

Angle of incidence, $θ1\theta_1$ ( $∘^{\circ}$ )	Angle of refraction, $θ2\theta_2$ ( $∘^{\circ}$ )
0	0
15	6
30	12
45	17
60	21
75	23.5

Using the data, they plot the points on the grid in Figure 1.

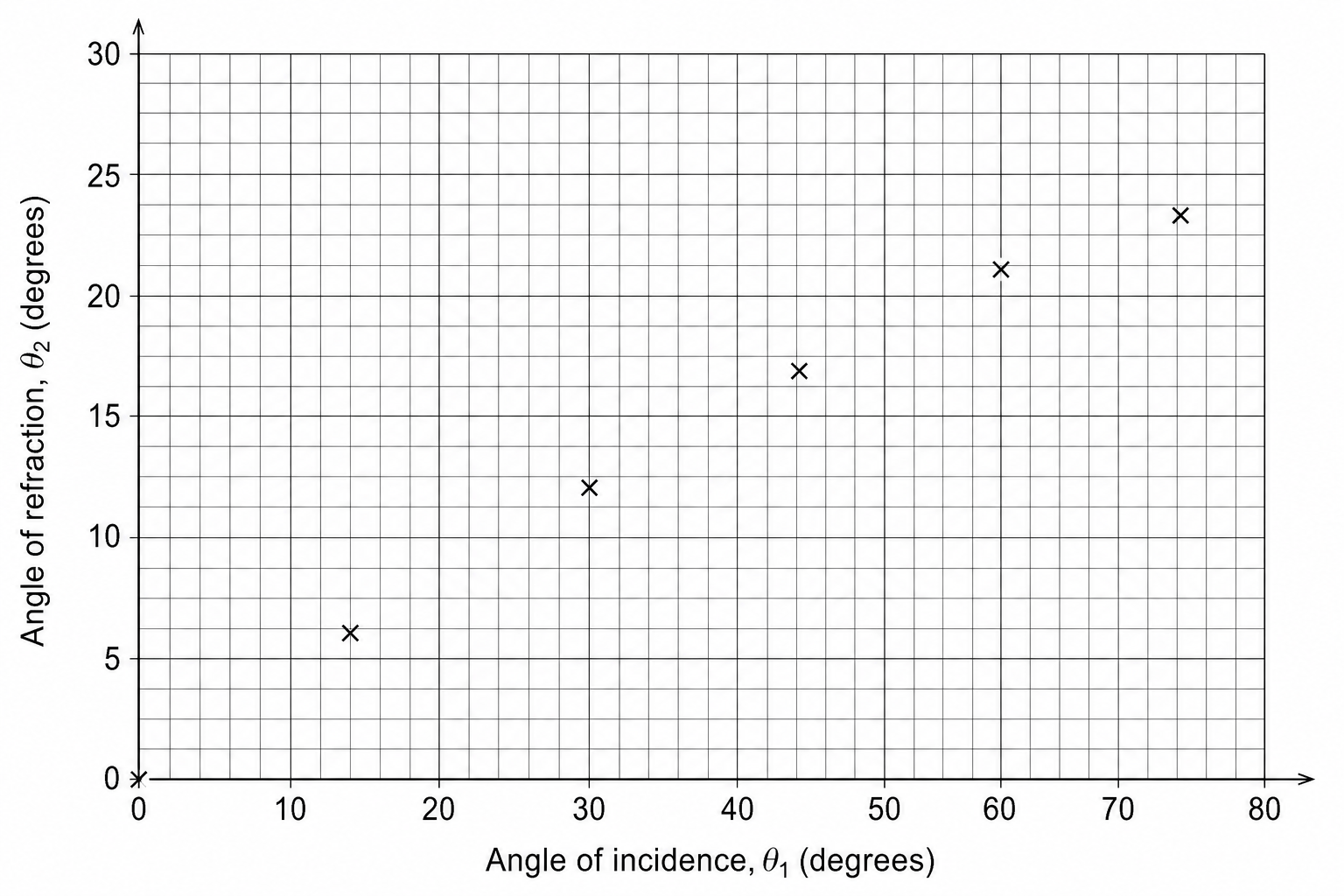

$Figure 1: A graph grid with 'Angle of incidence, \theta_1 (degrees)' on the x-axis scale from 0 to 80 and 'Angle of refraction, \theta_2 (degrees)' on the y-axis scale from 0 to 30. Six data points are plotted as 'x' marks at: (0, 0), (15, 6), (30, 12), (45, 17), (60, 21), and (75, 23.5).$

A researcher investigates how light refracts as it passes from air into a synthetic diamond crystal block.

They record the angle of incidence, $θ1\theta_1$ , and the angle of refraction, $θ2\theta_2$ , for several different angles.

Diamond Refraction Data

Angle of incidence, $θ1\theta_1$ ( $∘^{\circ}$ )	Angle of refraction, $θ2\theta_2$ ( $∘^{\circ}$ )
0	0
15	6
30	12
45	17
60	21
75	23.5

Using the data, they plot the points on the grid in Figure 1.
