Question 4

A student investigates how light refracts as it passes from air into a perspex block.

They record the angle of incidence, $θ1\theta_1$ , and the angle of refraction, $θ2\theta_2$ , for several different angles.

Perspex Refraction Data

Angle of incidence, $θ1\theta_1$ ( $∘^{\circ}$ )	Angle of refraction, $θ2\theta_2$ ( $∘^{\circ}$ )
0	0
15	10
30	19.5
45	28
60	35
75	40.5

Using the data, they plot the points on the grid in Figure 5.

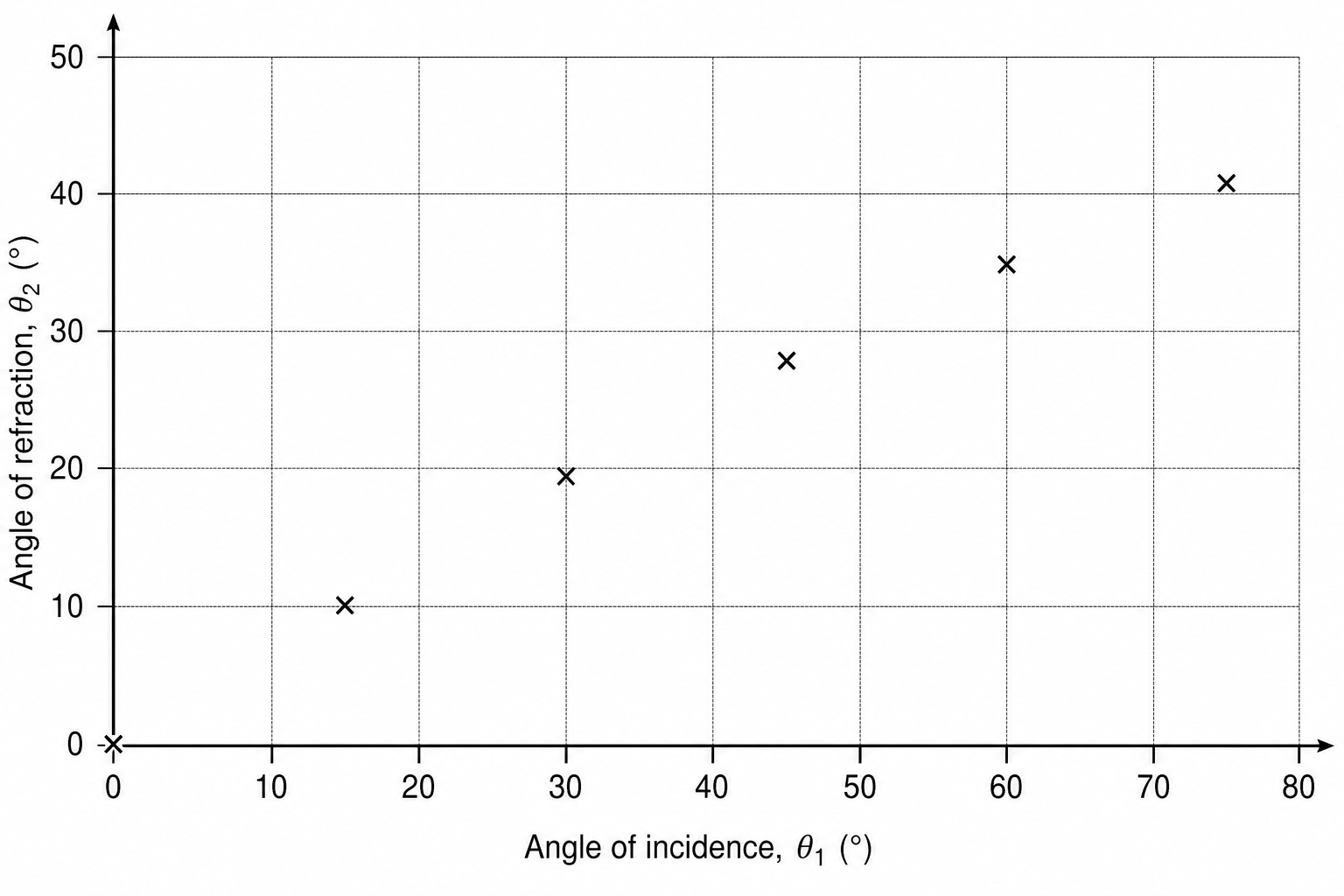

$Figure 5: A graph grid with 'Angle of incidence, \theta_1 (^{\circ})' on the x-axis scale from 0 to 80 and 'Angle of refraction, \theta_2 (^{\circ})' on the y-axis scale from 0 to 50. Six data points are plotted as 'x' marks at: (0, 0), (15, 10), (30, 20), (45, 28), (60, 35), and (75, 40.5).$

A student investigates how light refracts as it passes from air into a perspex block.

They record the angle of incidence, $θ1\theta_1$ , and the angle of refraction, $θ2\theta_2$ , for several different angles.

Perspex Refraction Data

Angle of incidence, $θ1\theta_1$ ( $∘^{\circ}$ )	Angle of refraction, $θ2\theta_2$ ( $∘^{\circ}$ )
0	0
15	10
30	19.5
45	28
60	35
75	40.5

Using the data, they plot the points on the grid in Figure 5.
