Question 14
Easy

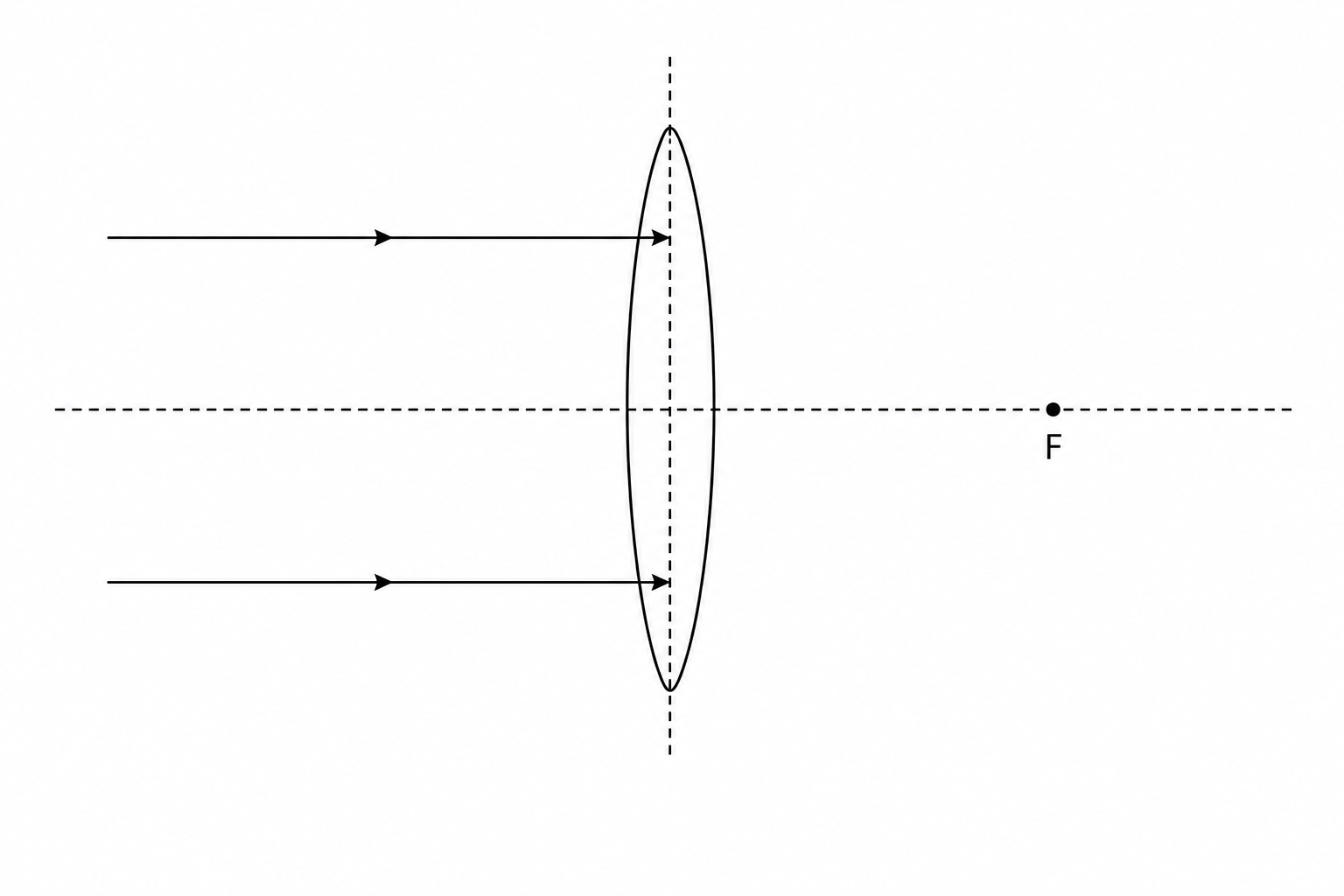

Figure 6 shows two light rays traveling parallel to the principal axis towards a thin convex (converging) glass lens.

Figure 6: Two parallel light rays incident on a convex glass lens.

On Figure 6, complete the paths of the two light rays to show how they travel after passing through the lens.

[1]
