Question 49
Easy

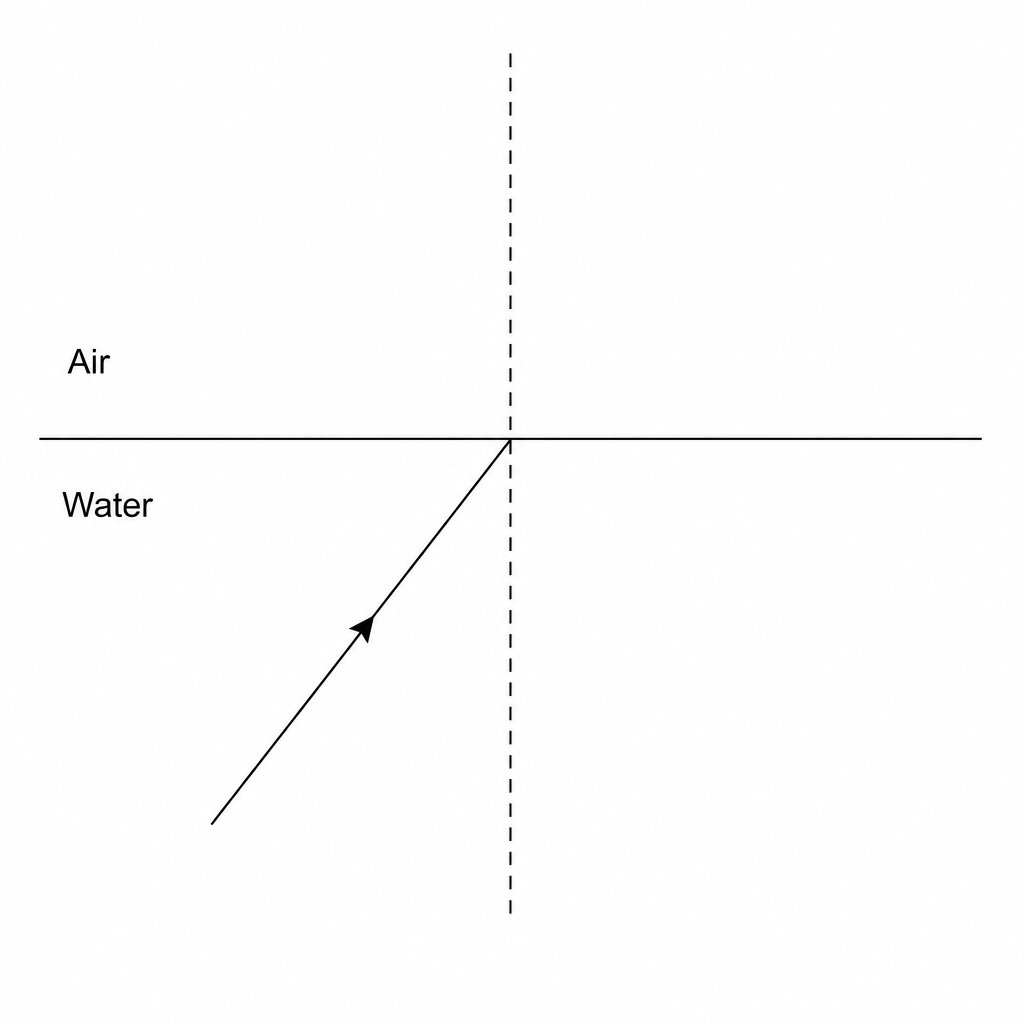

Figure 1 shows a ray of light underwater meeting the surface of the water, where it borders with air.

Figure 1: A ray of light traveling from water into air.

On Figure 1, draw the ray of light after it refracts as it exits the water and enters the air.

[2]
