Question 30
Easy

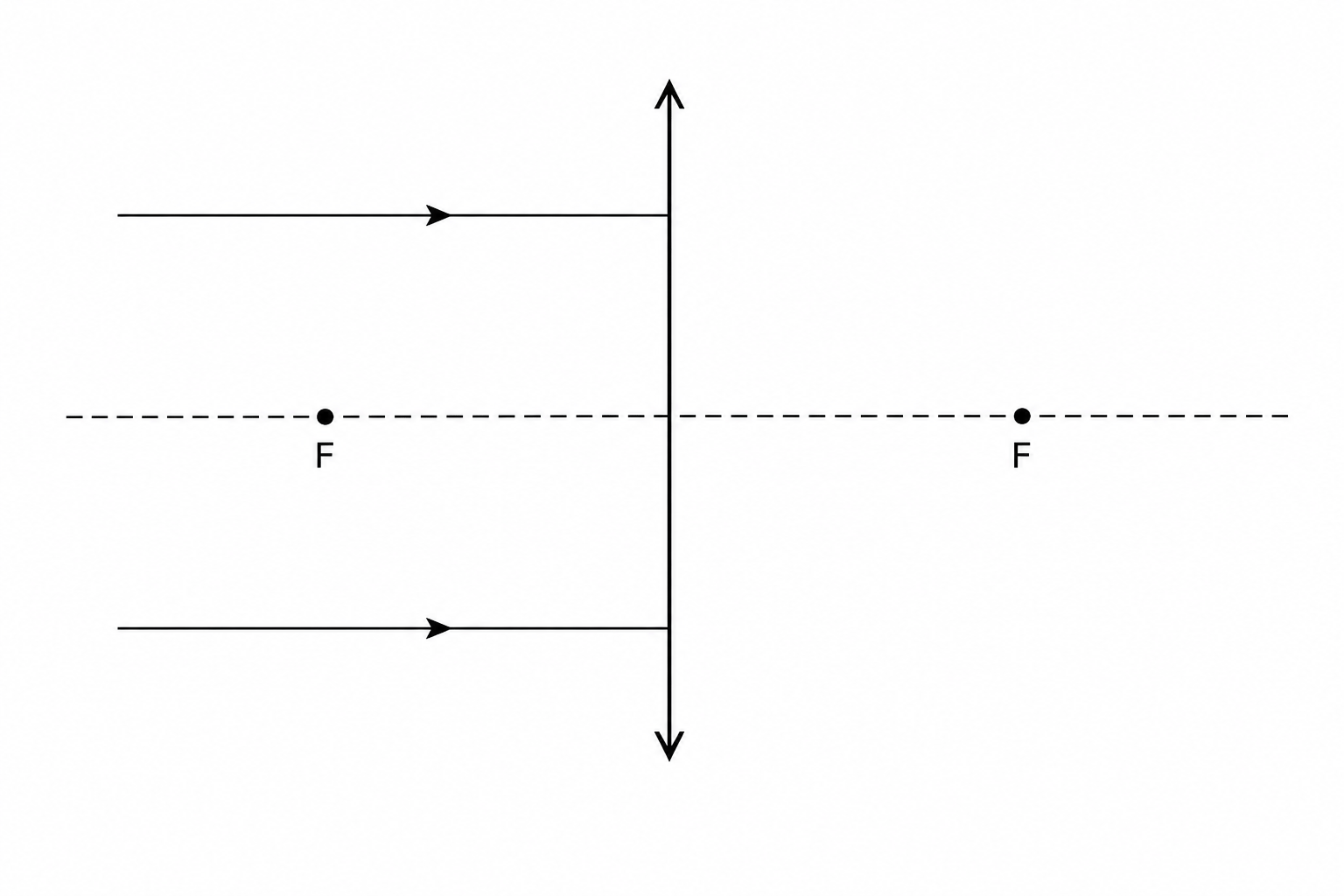

Figure 1 shows two parallel horizontal light rays entering a converging (convex) glass lens from the left.

Figure 1: Two parallel horizontal light rays entering a thin converging (convex) lens from the left, parallel to the central horizontal principal axis.

On Figure 1, draw the paths of the two light rays after they leave the lens.

[2]
