Question 34
Easy

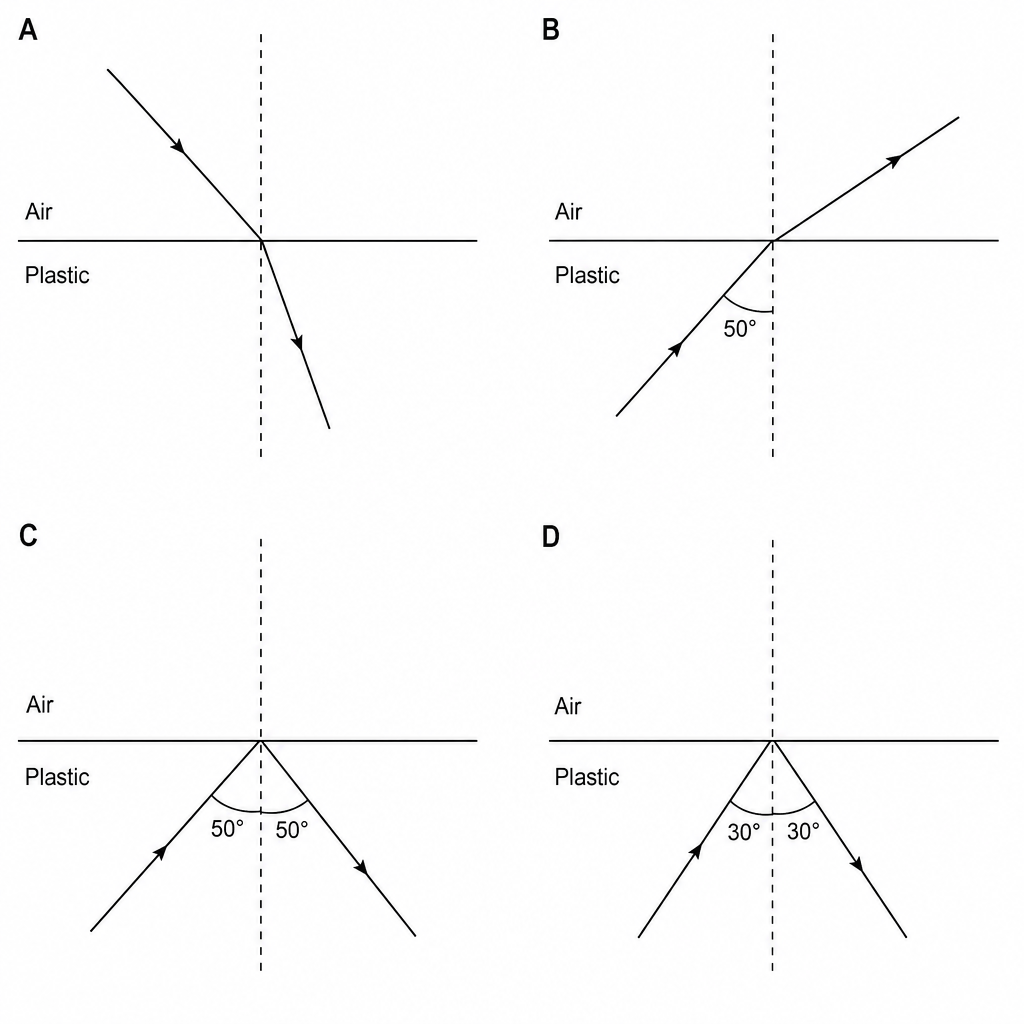

Which ray diagram correctly shows total internal reflection at a plastic-to-air boundary?

Ray diagrams showing plastic-to-air boundaries

Diagram A

Diagram B

Diagram C

Diagram D
