Question 38
Easy

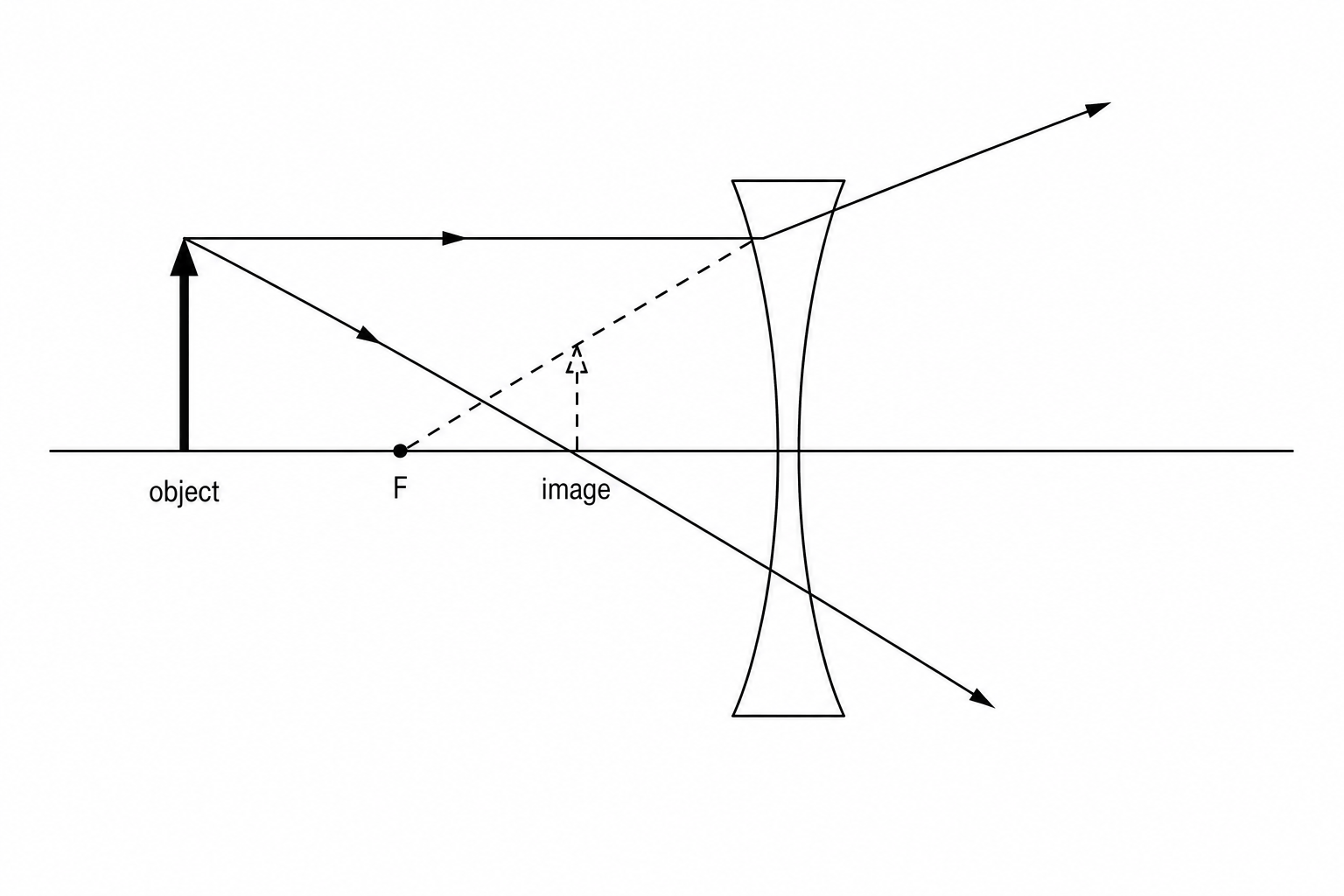

Figure 1 shows a ray diagram of an object placed near a lens.

Figure 1: Ray diagram of an object near a lens

This diagram shows a

converging lens forming a real image

diverging lens forming a real image

converging lens forming a virtual image

diverging lens forming a virtual image
