A light ray enters a transparent acrylic block through a horizontal face at point X. The incident and refracted rays are both sloping, rather than vertical.
Four construction lines are drawn.
| Line | Description |
|---|---|
| 1 | A vertical line through point Y, which is a different point on the face |
| 2 | A line following the incident ray towards point X |
| 3 | A vertical line through point X |
| 4 | A line following the refracted ray inside the block |
Which line should be labelled as the normal?
Line 2
Line 4
Line 1
Line 3

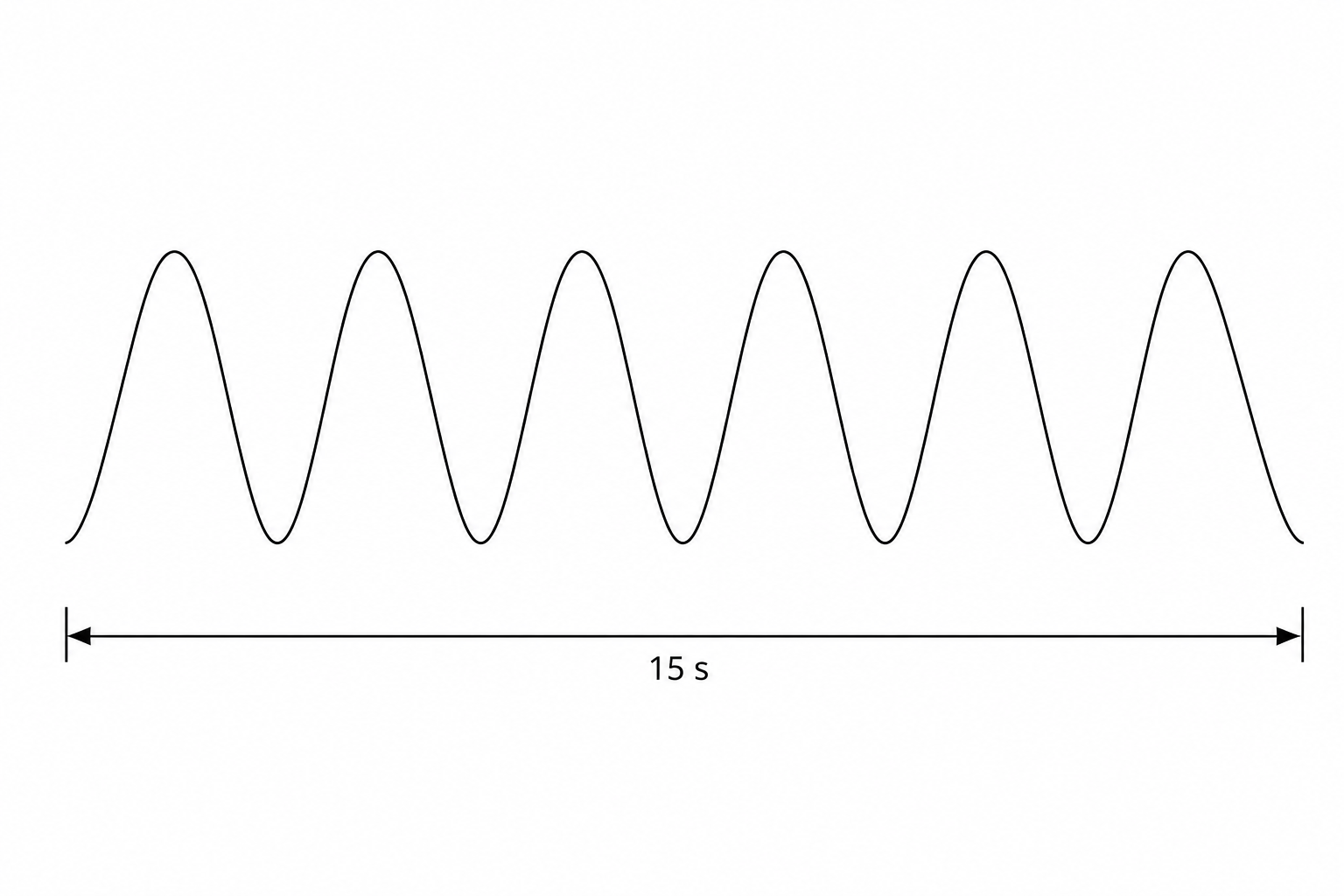

98 exam-style questions on AQA GCSE Physics 6.1 Waves in air, fluids and solids, covering 6.1.1 Transverse and longitudinal waves, 6.1.2 Properties of waves, 6.1.3 Reflection of waves, 6.1.4 Sound waves (HT only), and 6.1.5 Waves for detection and exploration (HT only). Each one has a worked solution and a mark scheme showing where the marks go.
