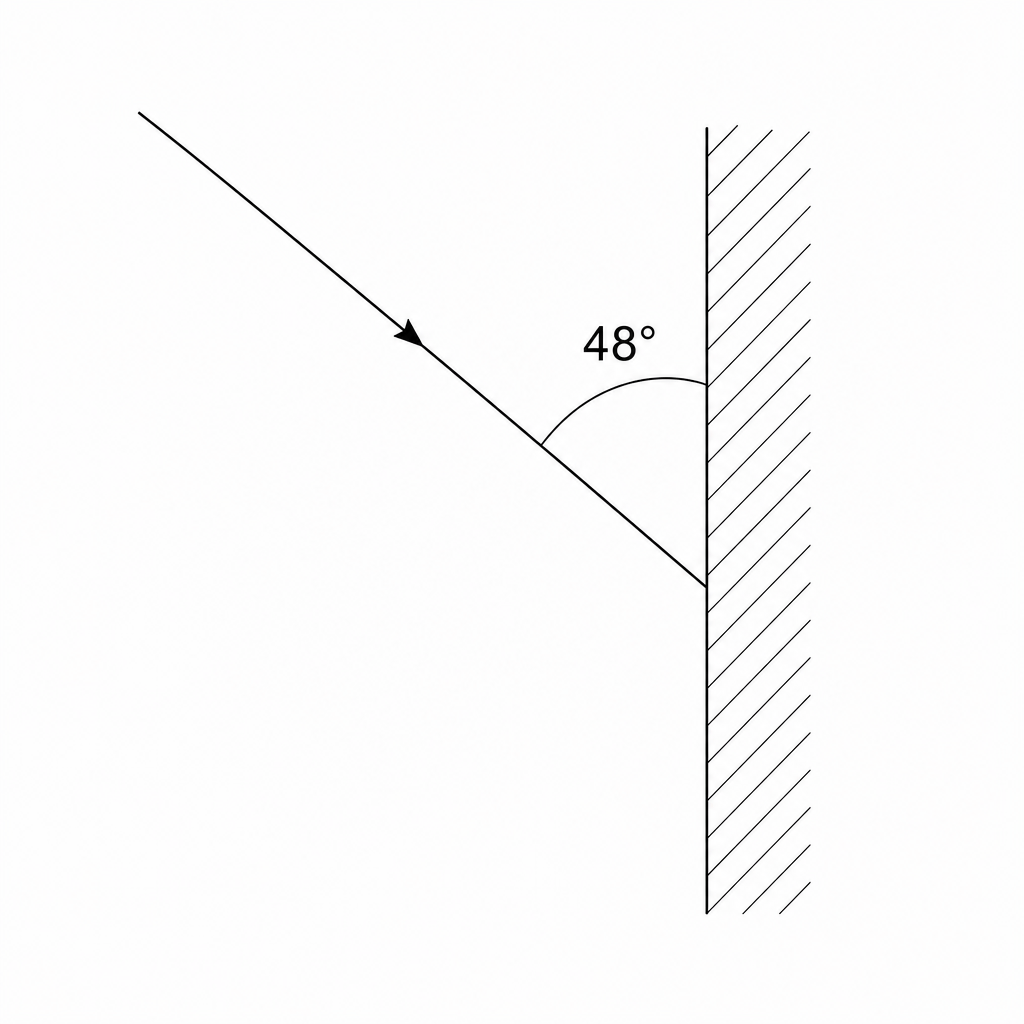

An ultrasound wave is incident on a flat, vertical steel plate as shown in Figure 1.
Complete the ray diagram to show the reflection of the ultrasound wave by doing the following:
- Draw the normal line at the point of incidence.
- Draw the reflected ray with an arrow showing its direction.
- Calculate and label the angle of incidence, iii, and the angle of reflection, rrr, with their values in degrees.
