An industrial active sonar probe is placed against the flat face of a concrete support pillar on an offshore wind turbine to check for internal structural defects. A signal generator sends high-frequency sound pulses into the concrete, and a receiver detects any reflections from internal air or water voids.

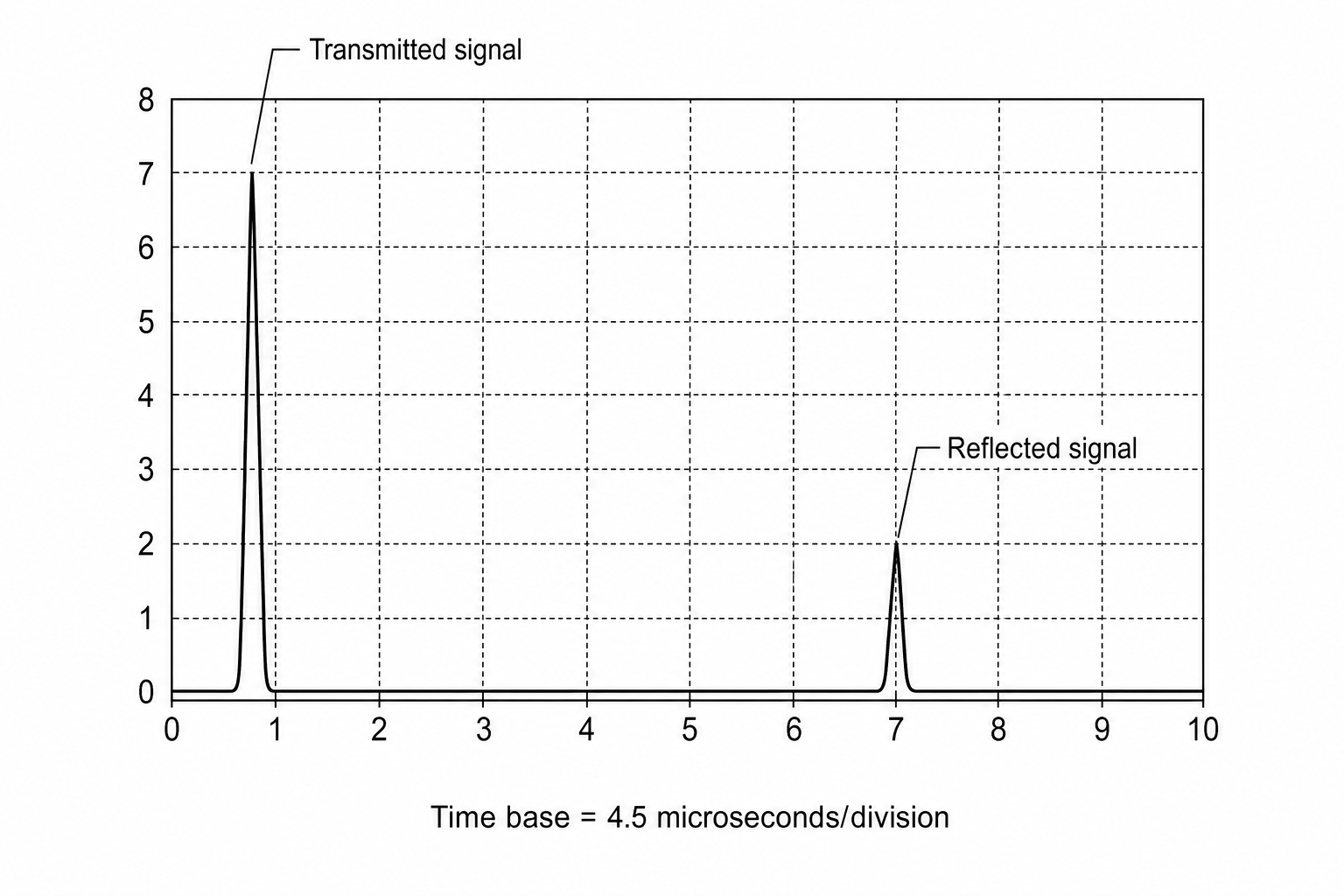

An oscilloscope screen displaying the transmitted pulse and the reflected pulse from an internal void is shown below:
Which of the following is equivalent to 4.5 microseconds (μs)4.5\text{ microseconds } (\mu\text{s})4.5 microseconds (μs)?
- 4.5 × 10-3 s
- 4.5 × 10-6 s
- 4.5 × 10-9 s
- 4.5 × 10-12 s
Ultrasound waves travel at 4000 m/s through this concrete structure.
Determine the depth of the internal void below the front surface of the concrete pillar.
Give your answer to two significant figures.
