Question 3
F

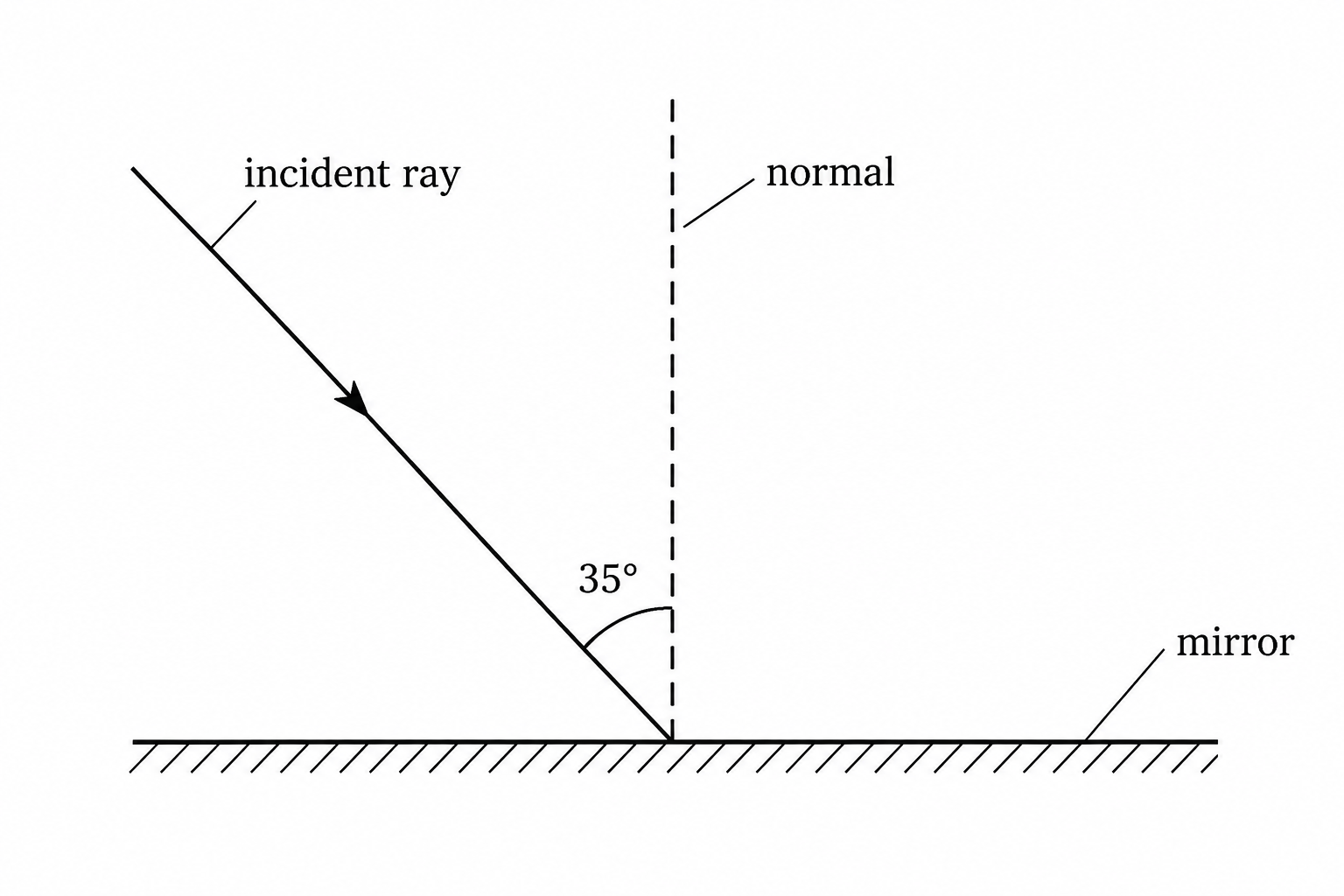

Figure shows a ray of light hitting a plane mirror. The normal has been drawn at the point where the ray meets the mirror.

Figure: A ray of light hitting a plane mirror, with the normal drawn at the point of incidence


a.

Complete Figure by drawing the reflected ray.

[2]
b.

State the size of the angle of reflection.

[1]
c.

The mirror is replaced by a sheet of matt black card. Explain why no reflected ray can now be seen.

[2]
