A vibration generator sends a sound wave through a long steel rod. The wave transfers energy horizontally from left to right.
A sensor records the displacement of one particle in the rod from its undisturbed position. A positive horizontal displacement is to the right and a positive vertical displacement is upwards. The displacement pattern repeats every 40 μs40\ \mu\text{s}40 μs.
| Time / μs\mu\text{s}μs | Horizontal displacement / μm\mu\text{m}μm | Vertical displacement / μm\mu\text{m}μm |
|---|---|---|
| 0 | 0 | 0 |
| 10 | +0.30 | 0 |
| 20 | 0 | 0 |
| 30 | −0.30 | 0 |
| 40 | 0 | 0 |
Explain how the horizontal and vertical displacement data show that the wave is longitudinal.
Predict the horizontal displacement and the vertical displacement of the particle at 70 μs70\ \mu\text{s}70 μs.

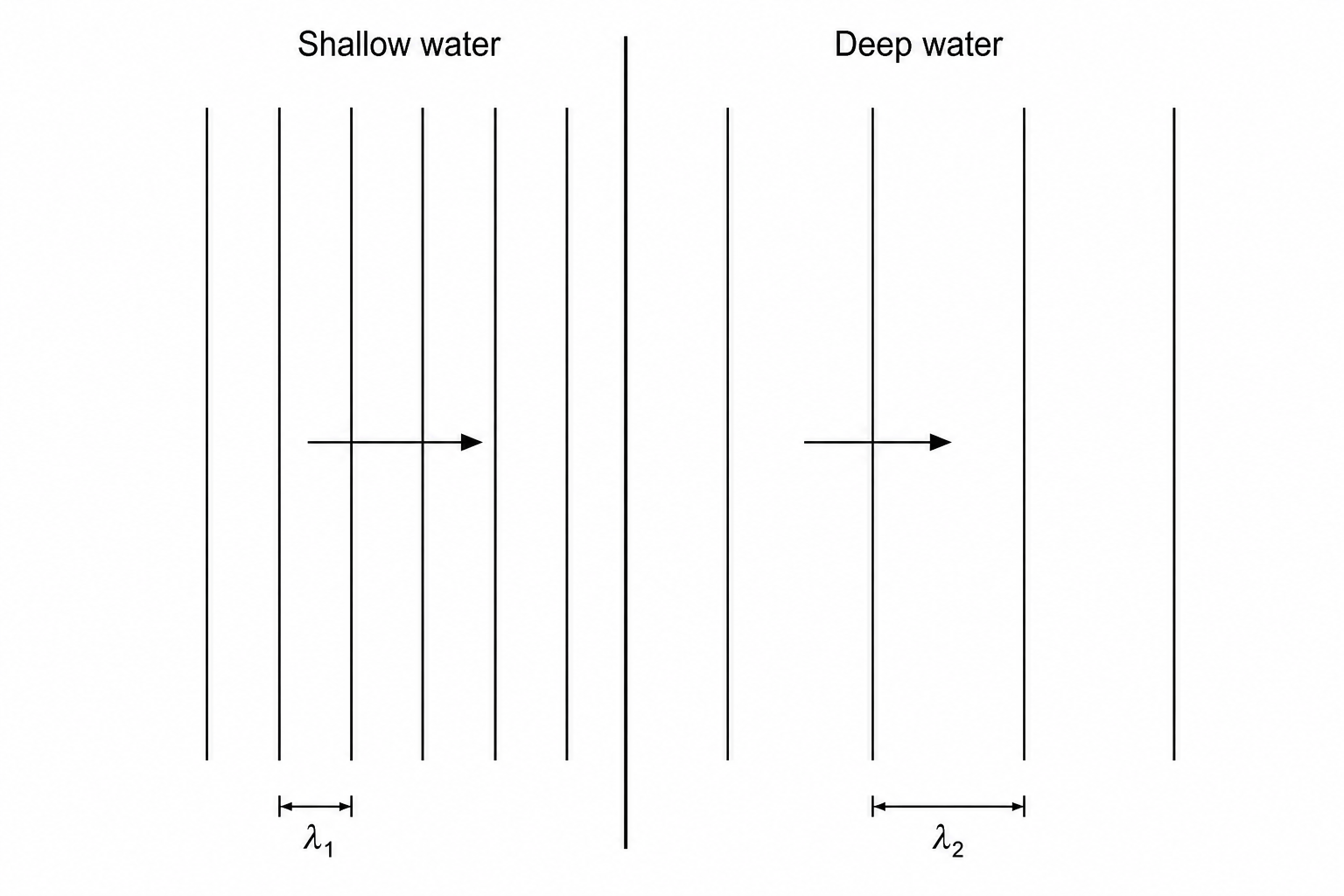

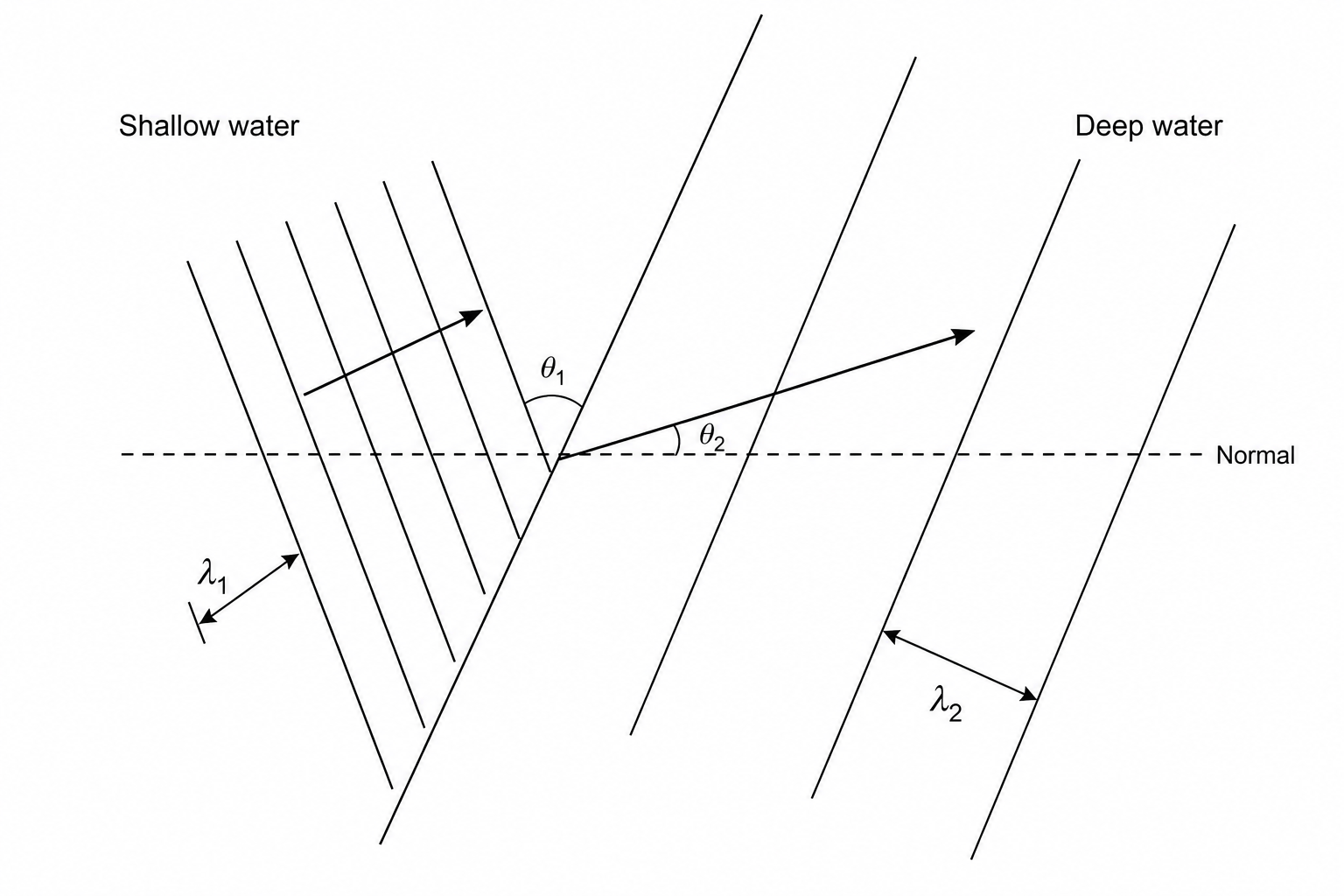

98 exam-style questions on AQA GCSE Physics 6.1 Waves in air, fluids and solids, covering 6.1.1 Transverse and longitudinal waves, 6.1.2 Properties of waves, 6.1.3 Reflection of waves, 6.1.4 Sound waves (HT only), and 6.1.5 Waves for detection and exploration (HT only). Each one has a worked solution and a mark scheme showing where the marks go.
