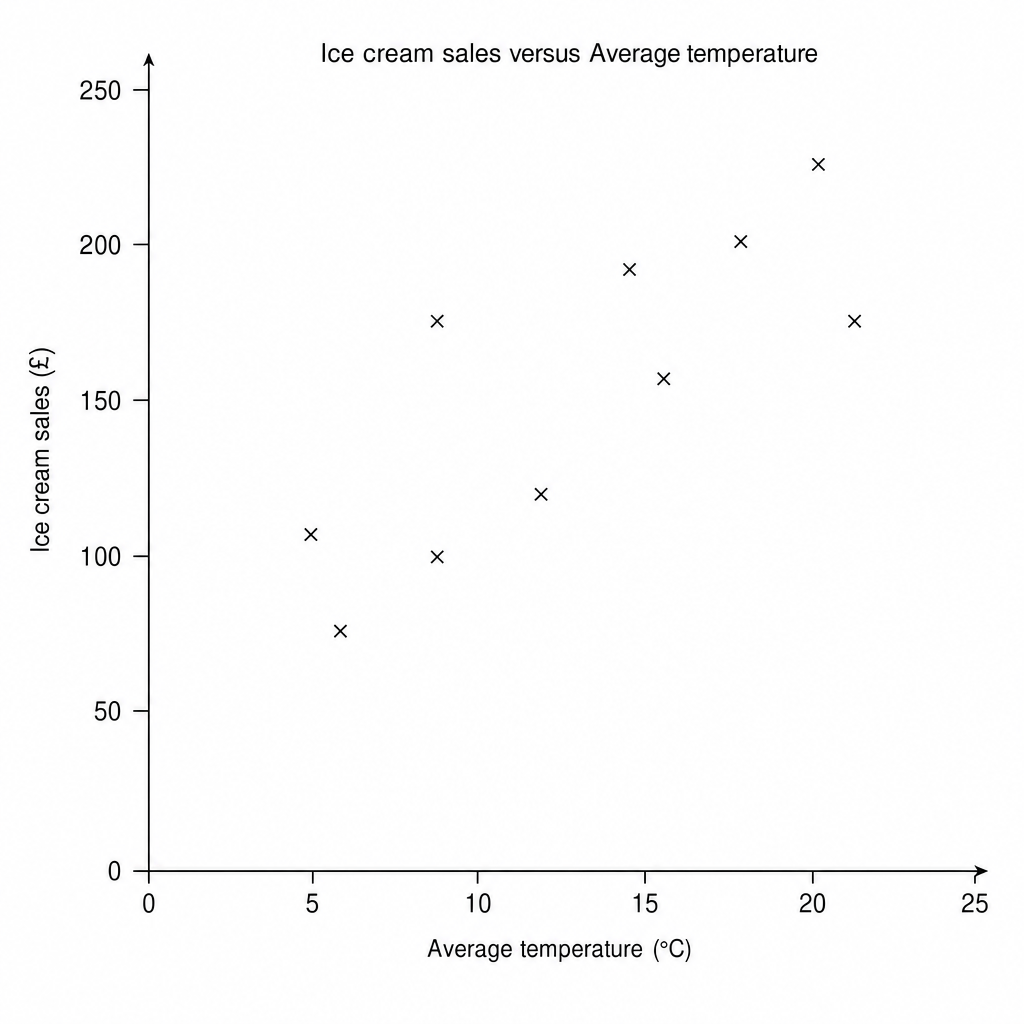

The average daytime temperature for 10 days is recorded. A shop also records its ice cream sales for each of the 10 days. The scatter graph shows this information.
| Average temperature (∘C^\circ\text{C}∘C) | Ice cream sales (£) |
|---|---|
| 6 | 105 |
| 7 | 75 |
| 10 | 100 |
| 10 | 175 |
| 13 | 115 |
| 15 | 190 |
| 16 | 155 |
| 18 | 200 |
| 20 | 225 |
| 21 | 175 |
What type of correlation does the scatter graph show?
On the 11th^{th}th day the temperature was 12∘12^\circ12∘. Estimate the ice cream sales on the 11th day.
The shop's manager wants to use the scatter graph to predict the ice cream sales for a day with an average temperature of 2∘2^\circ2∘. Comment on the reliability of this prediction.
Scatter Graphs Questions
Practise Edexcel GCSE Maths Scatter Graphs with exam-style questions for Foundation and Higher tier. 56 questions, matched to the Edexcel GCSE Maths (1MA1) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
