Scatter Graphs

MediumHard
123456789101112131415161718192021222324252627282930313233
Question 21

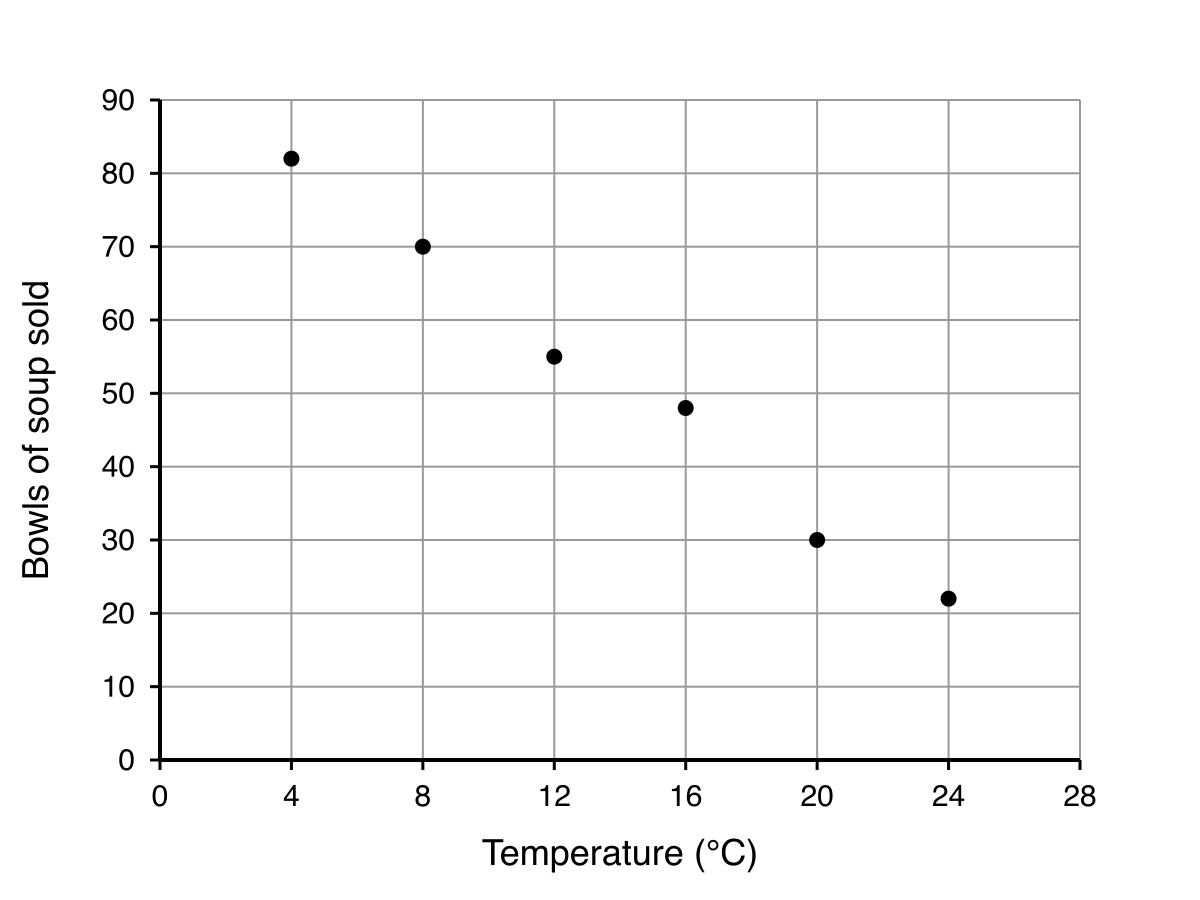

The scatter graph shows information about the outside temperature and the number of bowls of hot soup sold in a cafe.

Temperature (∘C^{\circ}\text{C}∘C)Bowls of Soup Sold
482
870
1255
1648
2030
2422

Scatter graph of outside temperature against the number of bowls of hot soup sold, showing six plotted data points.

a.

What type of correlation does the scatter graph show?

[1]
b.

The shopkeeper says, "If I sell more soup today, the temperature outside will drop." Comment on what the shopkeeper says.

[1]

Scatter Graphs Questions

  1. GCSE
  2. /Maths
  3. /Scatter Graphs

Practise Edexcel GCSE Maths Scatter Graphs with exam-style questions for Foundation and Higher tier. 55 questions, matched to the Edexcel GCSE Maths (1MA1) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
