Question 63
a.

State two common applications of total internal reflection in modern technology or medicine.

[2]
b.

Describe the two physical conditions required for total internal reflection to occur at a boundary.

[2]
c.

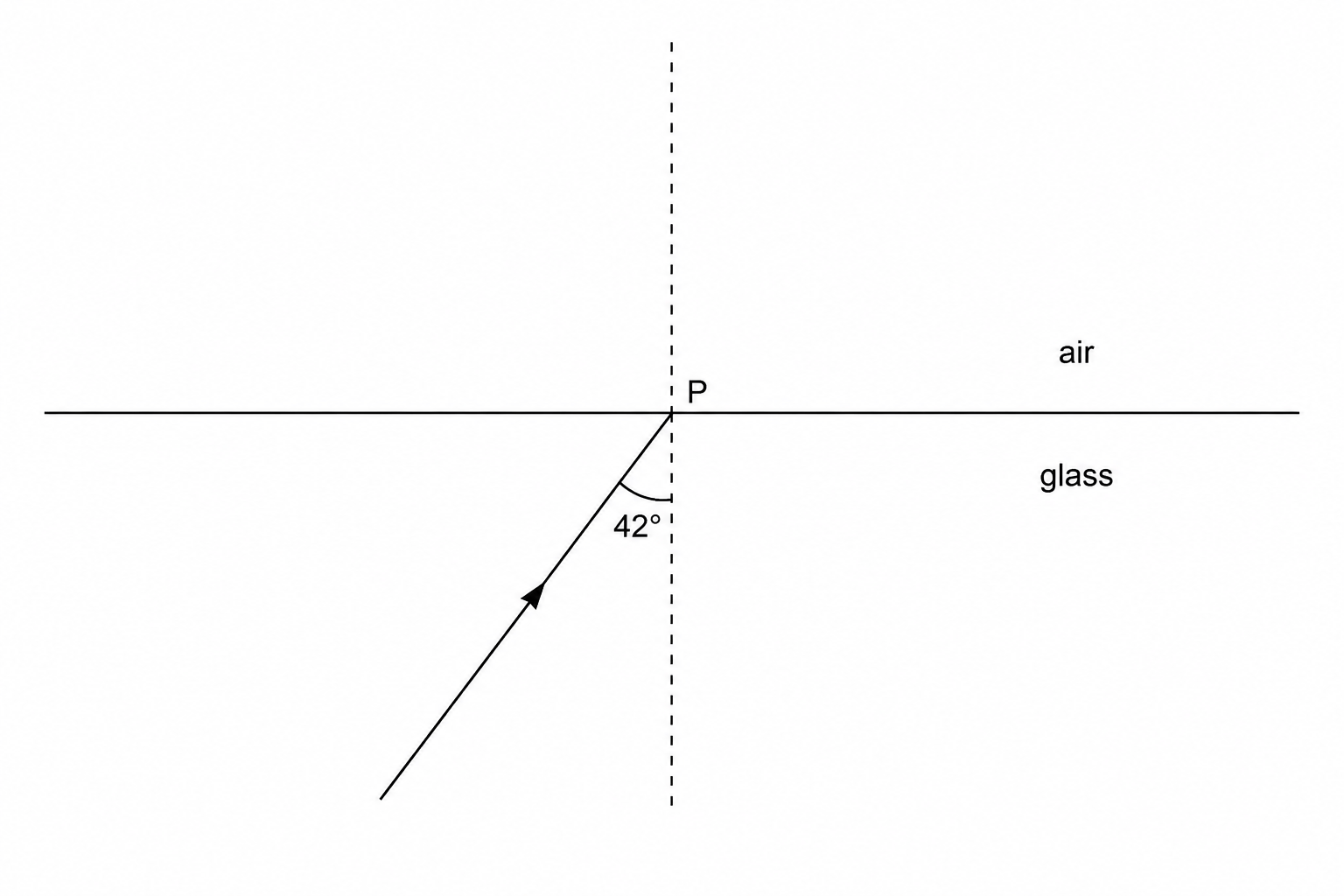

A light ray travels inside a glass block and is incident on the flat boundary with air at point PPP, as shown in the diagram.

Light ray incident on glass-air boundary

The angle of incidence at P P\,P is 42∘42^\circ42∘. The critical angle of this glass is 38.8∘38.8^\circ38.8∘. Describe the path of the light ray after it reaches point PPP.

[2]
d.

State the equation linking critical angle (ccc) and refractive index (nnn).

[1]
e.

Calculate the refractive index of this glass block. Give your answer to 3 significant figures.

[2]
