Question 39

A student is investigating the refraction of light as it passes from air into a rectangular plastic block.

What is meant by the term refraction?

[1]

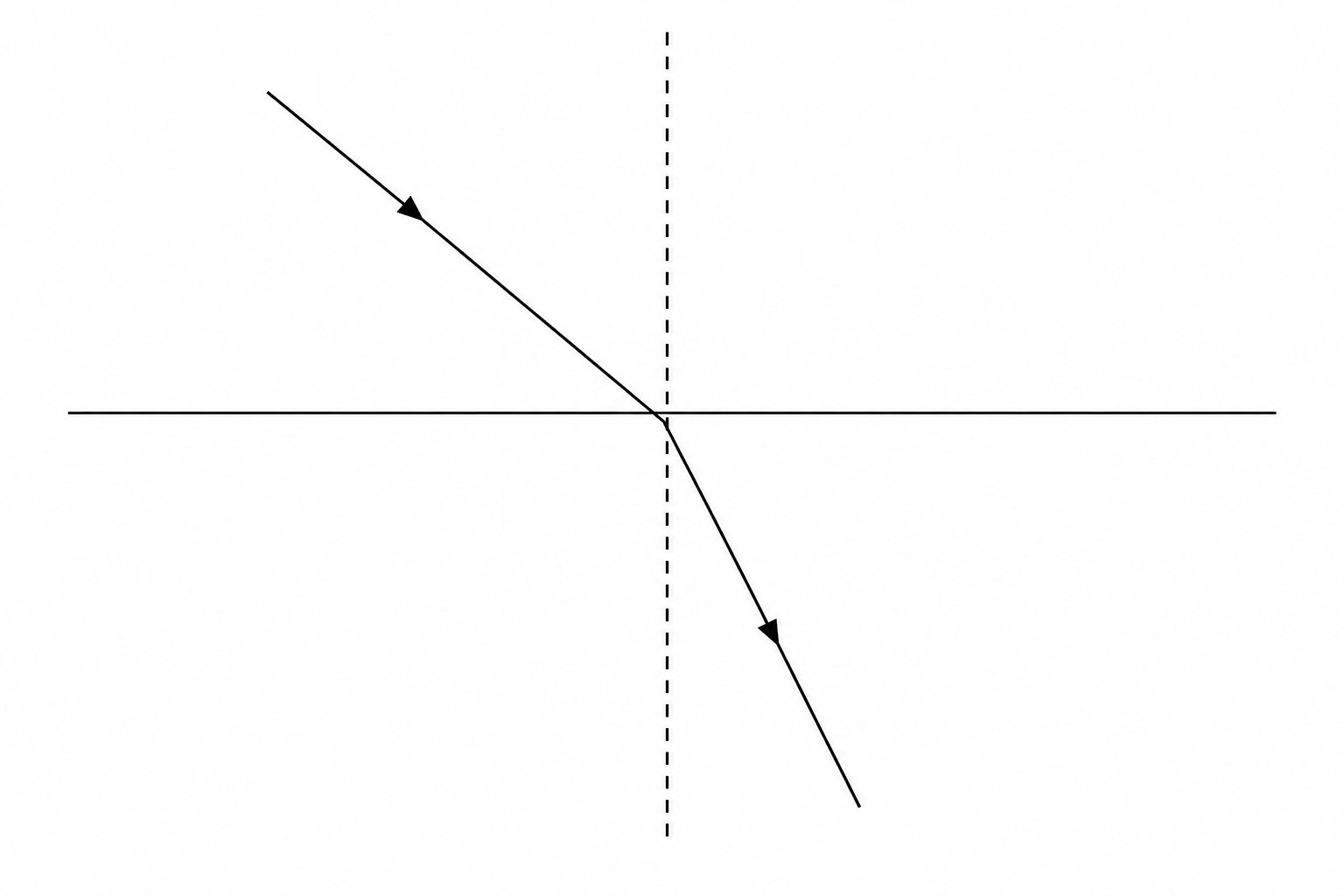

The diagram below shows a ray of light travelling from air into the plastic block.

A ray of light traveling from air into a rectangular plastic block.

Describe the position of: the angle of incidence, $i$

[1]

the angle of refraction, $r$

[1]

State the equation linking refractive index ( $n$ ), angle of incidence ( $i$ ), and angle of refraction ( $r$ ).

[1]

Describe an experimental method to determine the refractive index of the plastic block using a ray box, a protractor, and a sheet of paper. Your description should include:

what measurements to take and how to record the paths of the light rays,
how to obtain a reliable range of results,
how to use a graph to find the refractive index.

[6]
