The diagram below shows another light ray entering a different right-angled glass prism. It hits the inside of the left slanted surface at $Z$ as shown.

Right-angled glass prism

Describe to complete the path of this ray as it passes through and exits the prism.

[3]

Light and sound Questions

IGCSE
Physics
Light and sound

IGCSE
Physics Edexcel
Question bank

Light and sound

Easy Medium Hard

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66

Question 42

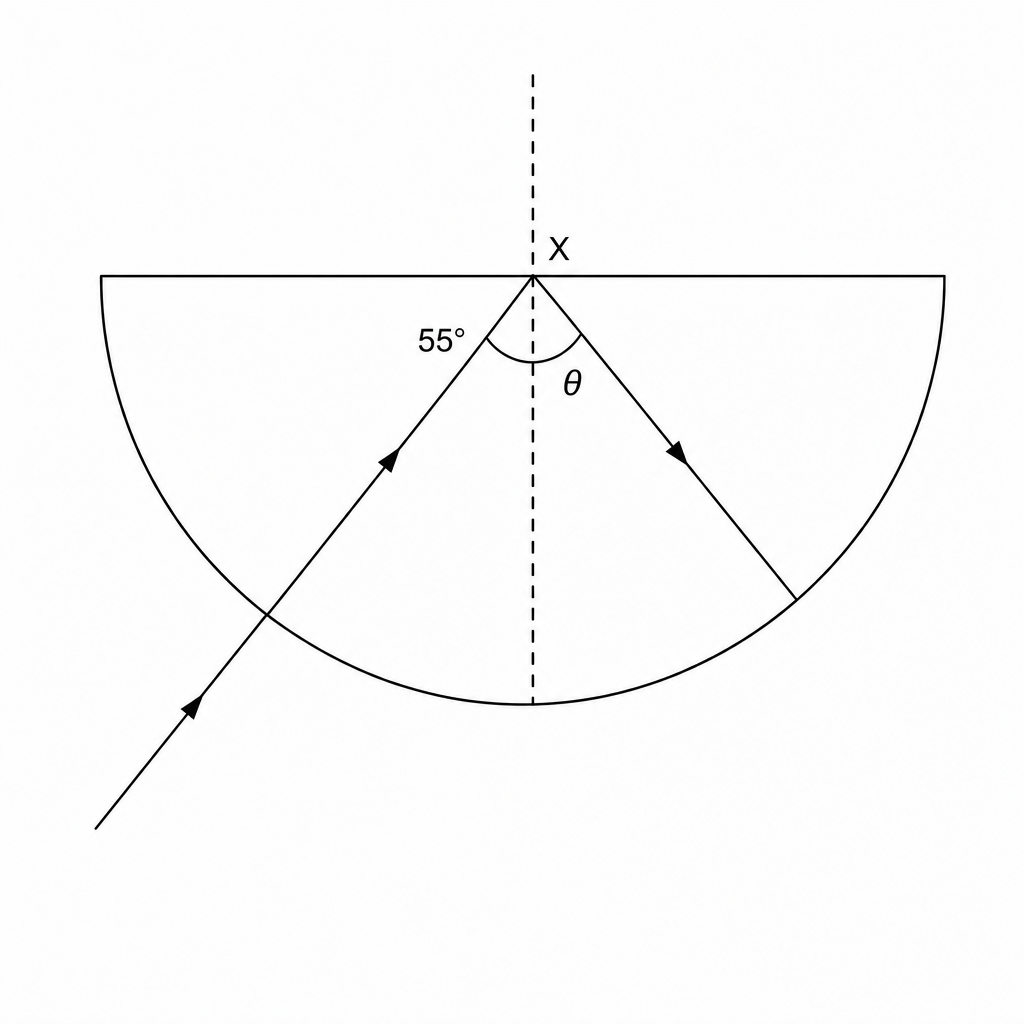

The diagram shows a light ray passing through a semicircular block of plastic.

Semicircular plastic block

The dotted line is the normal to the flat surface at $X$ . When the light ray hits the flat surface at $X$ , all of it is reflected back inside.

Name the process shown in the diagram.

[1]

What is the value of the angle labelled $θ\theta$ ?

[1]

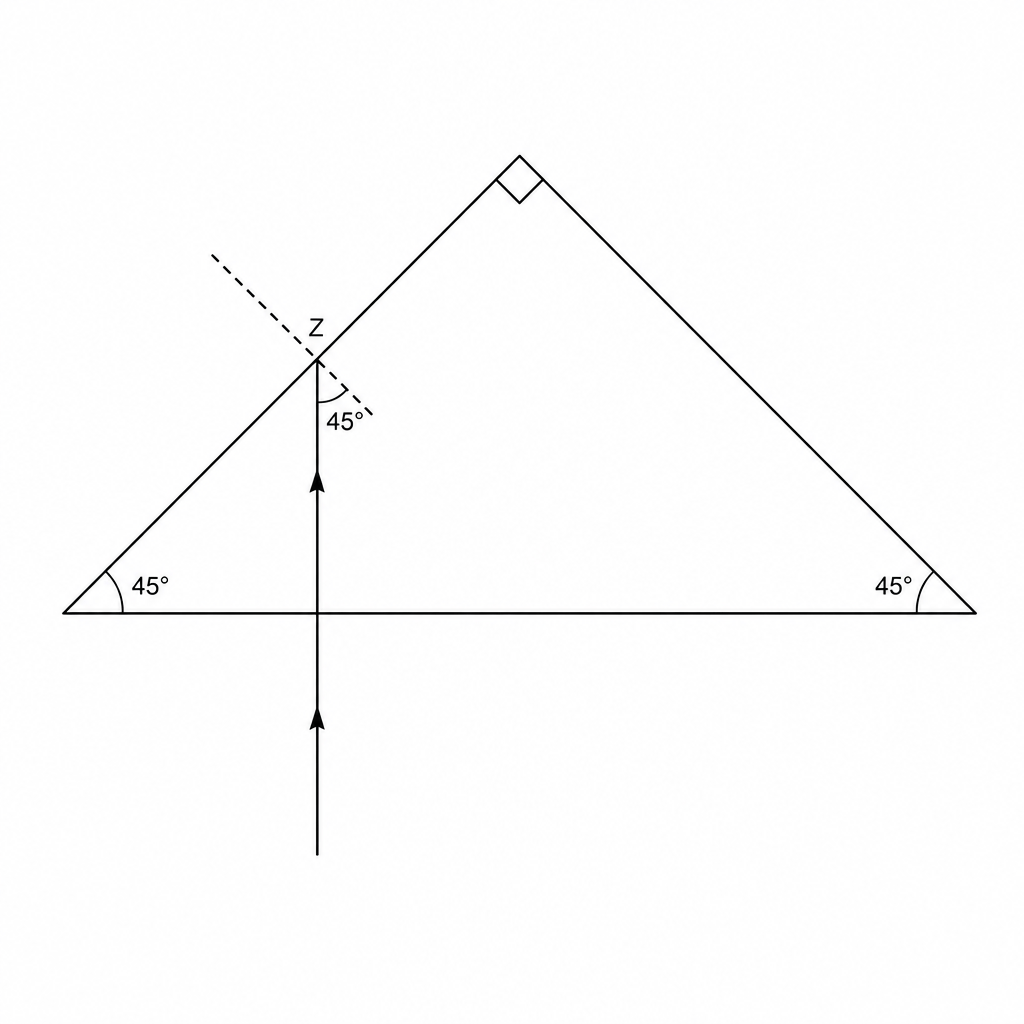

The diagram below shows another light ray entering a different right-angled glass prism. It hits the inside of the left slanted surface at $Z$ as shown.

Right-angled glass prism

Describe to complete the path of this ray as it passes through and exits the prism.

[3]
