A safety monitoring system in a chemical plant uses three sensors to determine if a relief valve should be activated:
- Sensor A A\,A detects high temperature.
- Sensor B B\,B detects high pressure.
- Sensor C C\,C detects that the manual override is active.

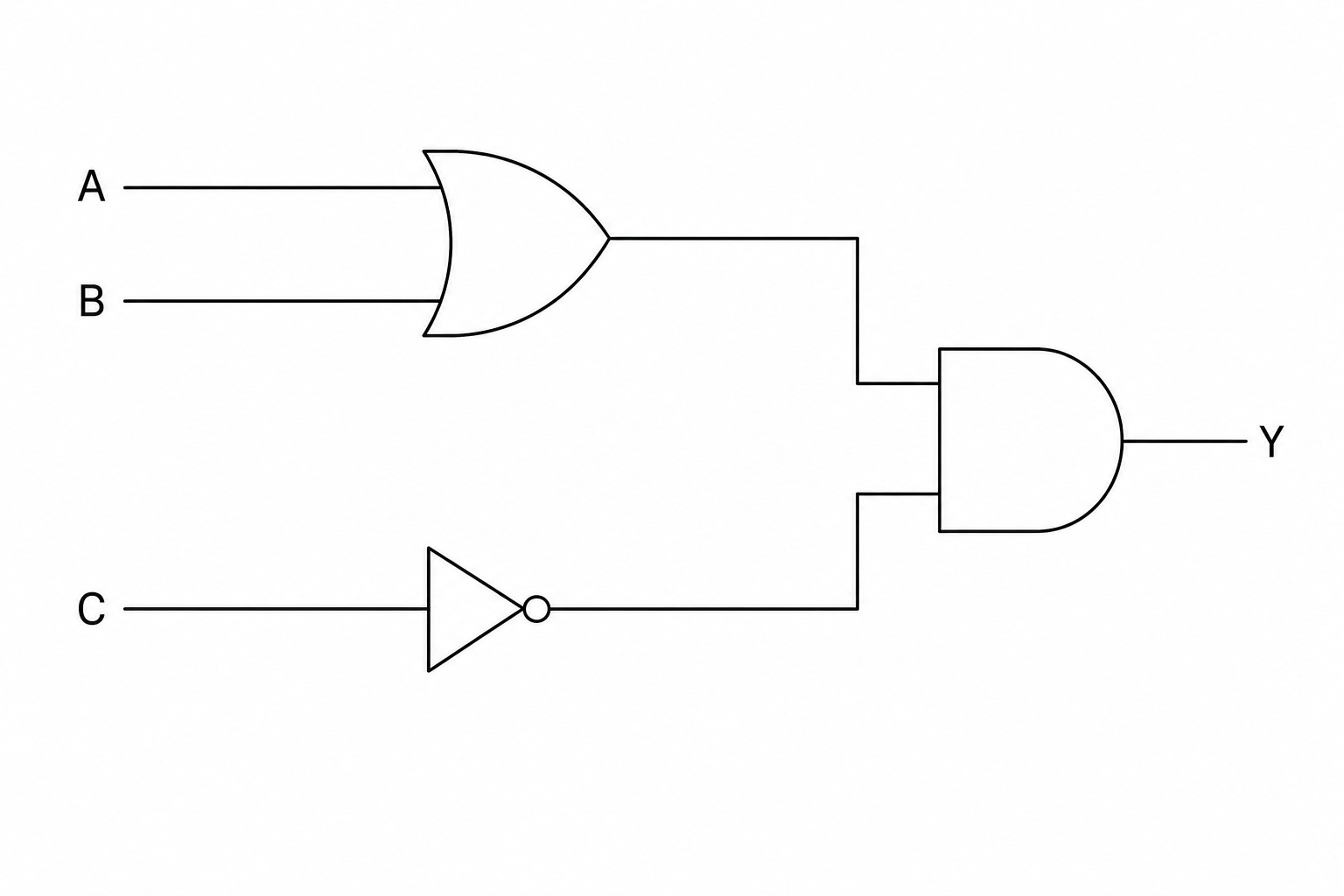

The digital logic circuit shown below determines the valve activation signal Y Y\,Y based on the inputs from these sensors.
Write a Boolean expression to show how the output Y Y\,Y is calculated from the inputs AAA, BBB, and CCC.
You can use either the Boolean operator words (AND, OR, NOT) or standard logic symbols.
Boolean logic Questions
Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
