11Easy
0/3

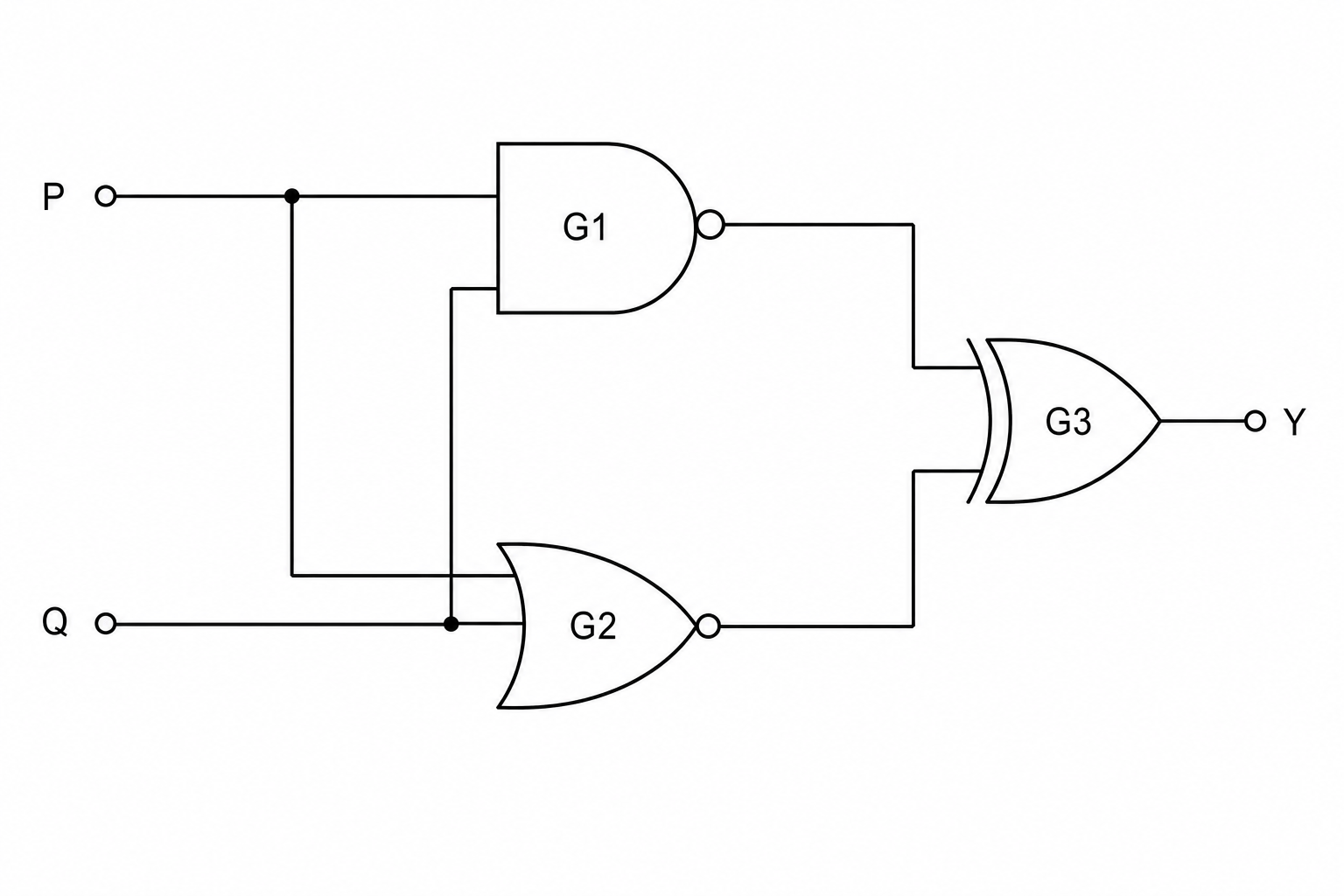

State the name of the logic gates represented by the labels G1, G2, and G3 in the logic circuit shown below.

Logic Circuit Diagram

[3]

Boolean logic Questions

Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
