29Easy
0/1

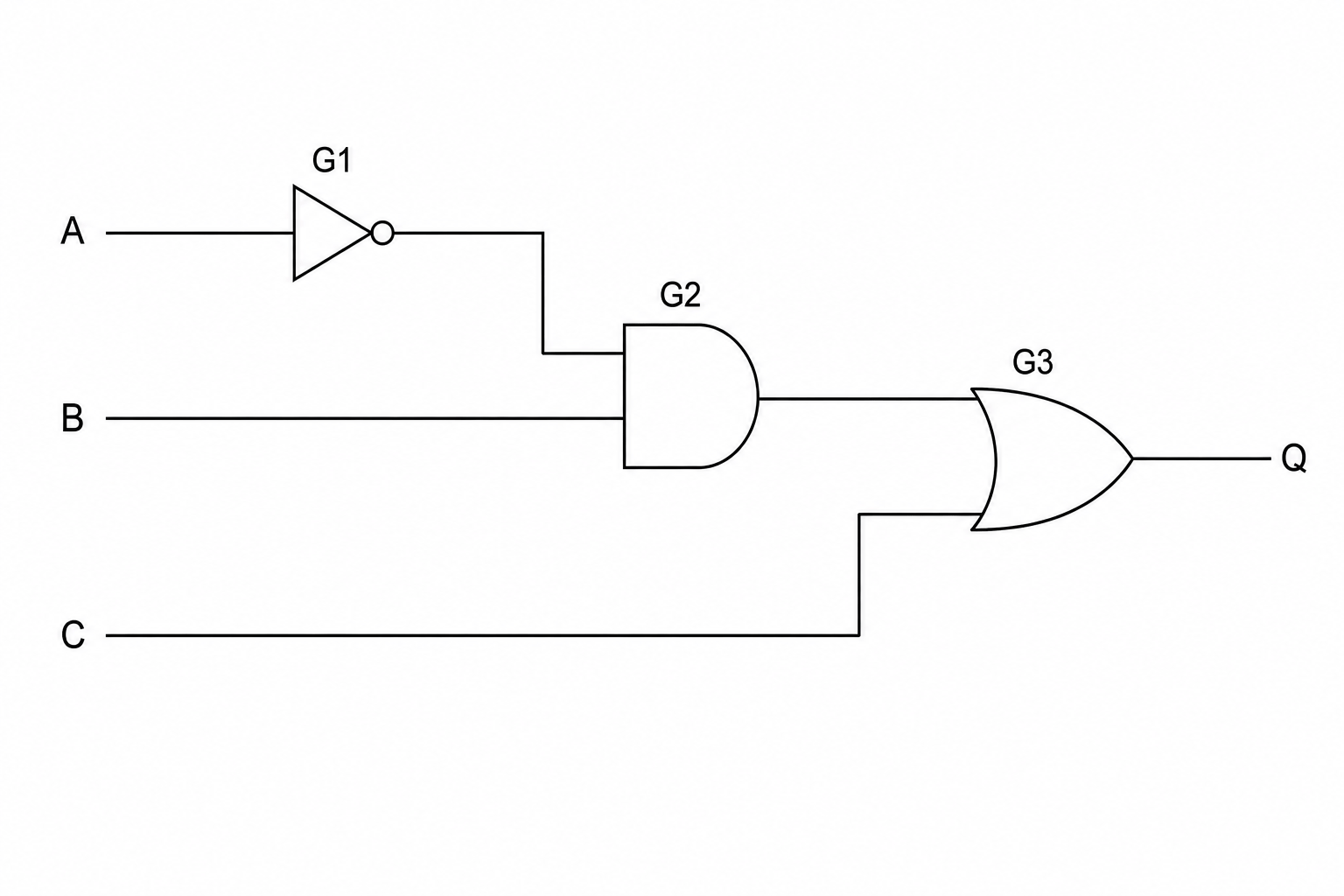

State the type of logic gate labelled G2 G_2\,G2​ in the logic circuit shown in Figure 1.

Logic circuit diagram with inputs A, B, and C. Input A goes into a NOT gate labelled G1. The output of G1 and input B are the inputs to gate G2. The output of G2 and input C are the inputs to an OR gate labelled G3, which produces the final output Q. Gate G2 is drawn as a D-shape with a straight back and curved front representing an AND gate. G1 is a triangle with a circle. G3 is a curved shield shape.

[1]

Boolean logic Questions

Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
