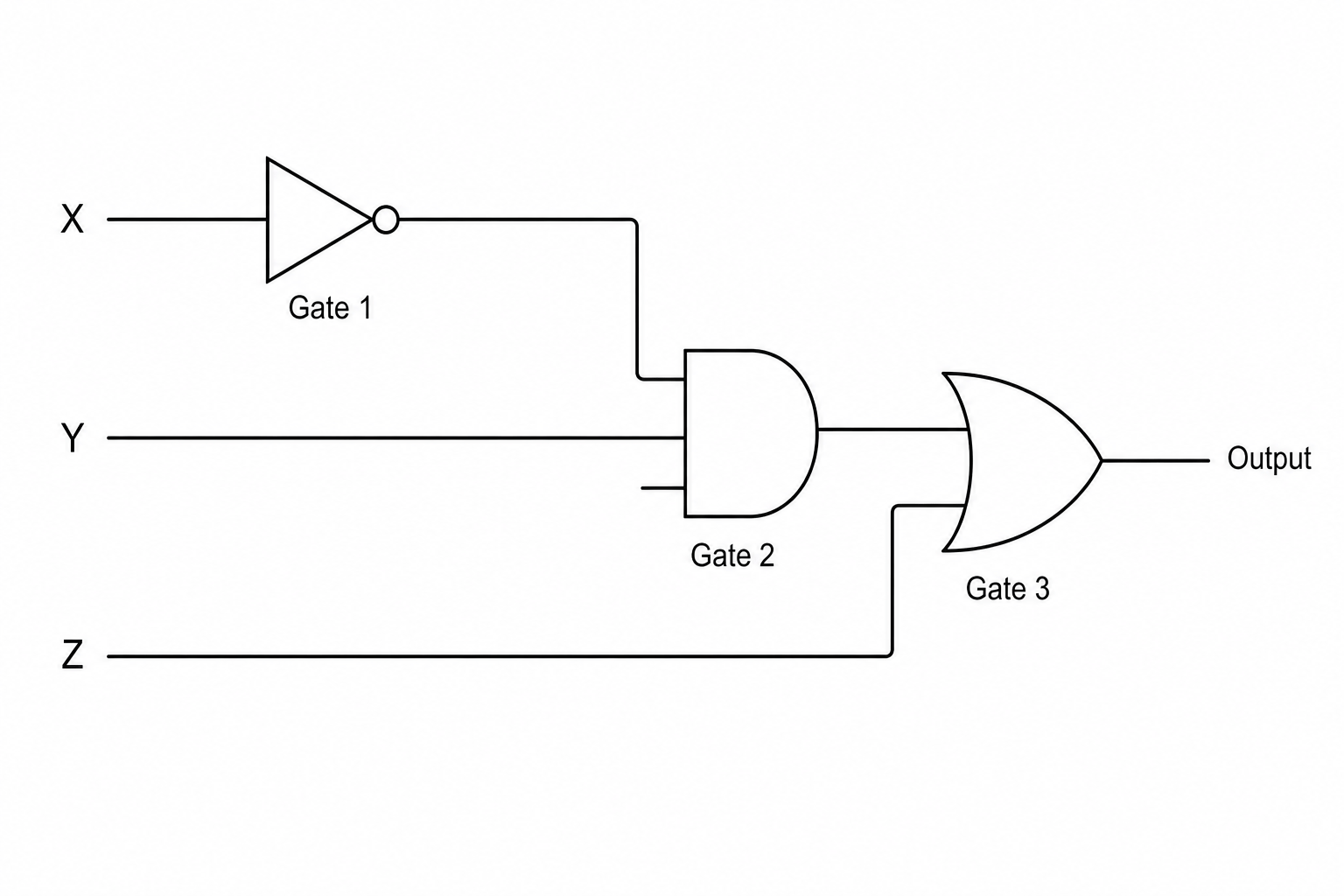

Figure 3 shows a logic circuit diagram with three inputs, labeled X, Y, and Z, and three logic gates, labeled Gate 1, Gate 2, and Gate 3.

A logic circuit diagram with three inputs: X, Y, and Z. Input X connects to the input of Gate 1. Gate 1 is a triangular symbol with a small circle at its tip. The output of Gate 1 and input Y are connected to the inputs of Gate 2. Gate 2 is a D-shaped symbol with a straight input boundary and a rounded output front. The output of Gate 2 and input Z are connected to the inputs of Gate 3. Gate 3 has a curved input boundary and a pointed nose at its output. The output of Gate 3 connects to the circuit's final output.

State the name of the logic gate used at Gate 2 in Figure 3.

[1]

Boolean logic Questions

Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
