An automated greenhouse ventilation system activates a fan when the system is active and either the temperature is high or the humidity is high.
Table 1 shows the truth table for this system with inputs:
- S (System Active: 0 = Deactivated, 1 = Activated)
- T (High Temp: 0 = Normal, 1 = High)
- H (High Humidity: 0 = Normal, 1 = High)
- Output F (Vent Fan: 0 = Off, 1 = On)
Table 1
| System Active (S) | High Temp (T) | High Humidity (H) | Vent Fan (F) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 |

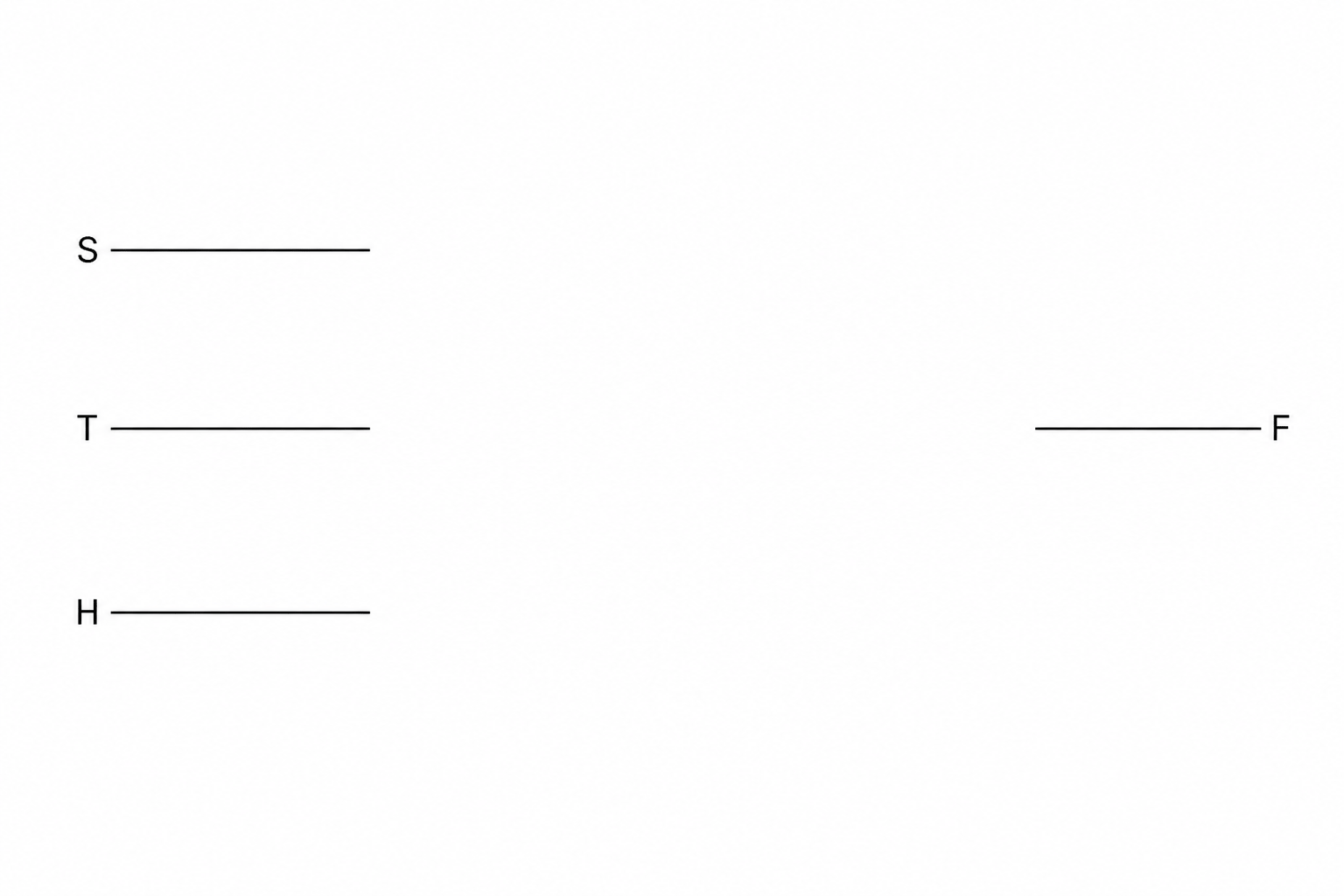

Draw the logic circuit that represents the truth table in Table 1. You must use standard symbols for logic gates.
