3Medium
0/3

An autonomous drone's payload release mechanism (RRR) is activated (output is 1) if all of the following conditions are met:

  • The collision hazard sensor (HHH) is off (0)
  • The armed safety key (KKK) is on (1)
  • The GPS lock indicator (GGG) is on (1)

Complete the logic circuit to represent this system.

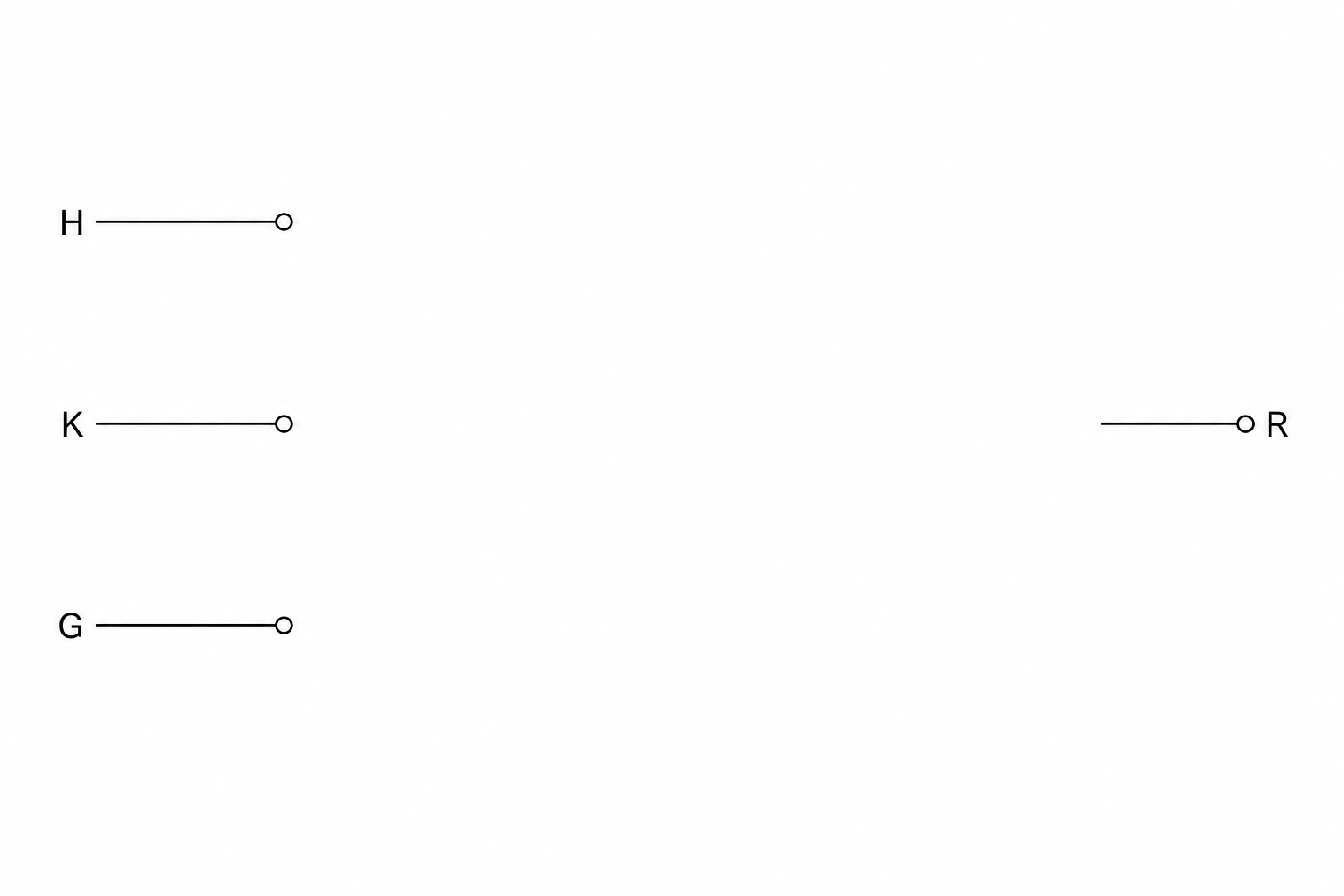

Logic circuit template with inputs H, K, G and output R

Your circuit must use only standard 2-input AND gates and 1-input NOT gates.

[3]
