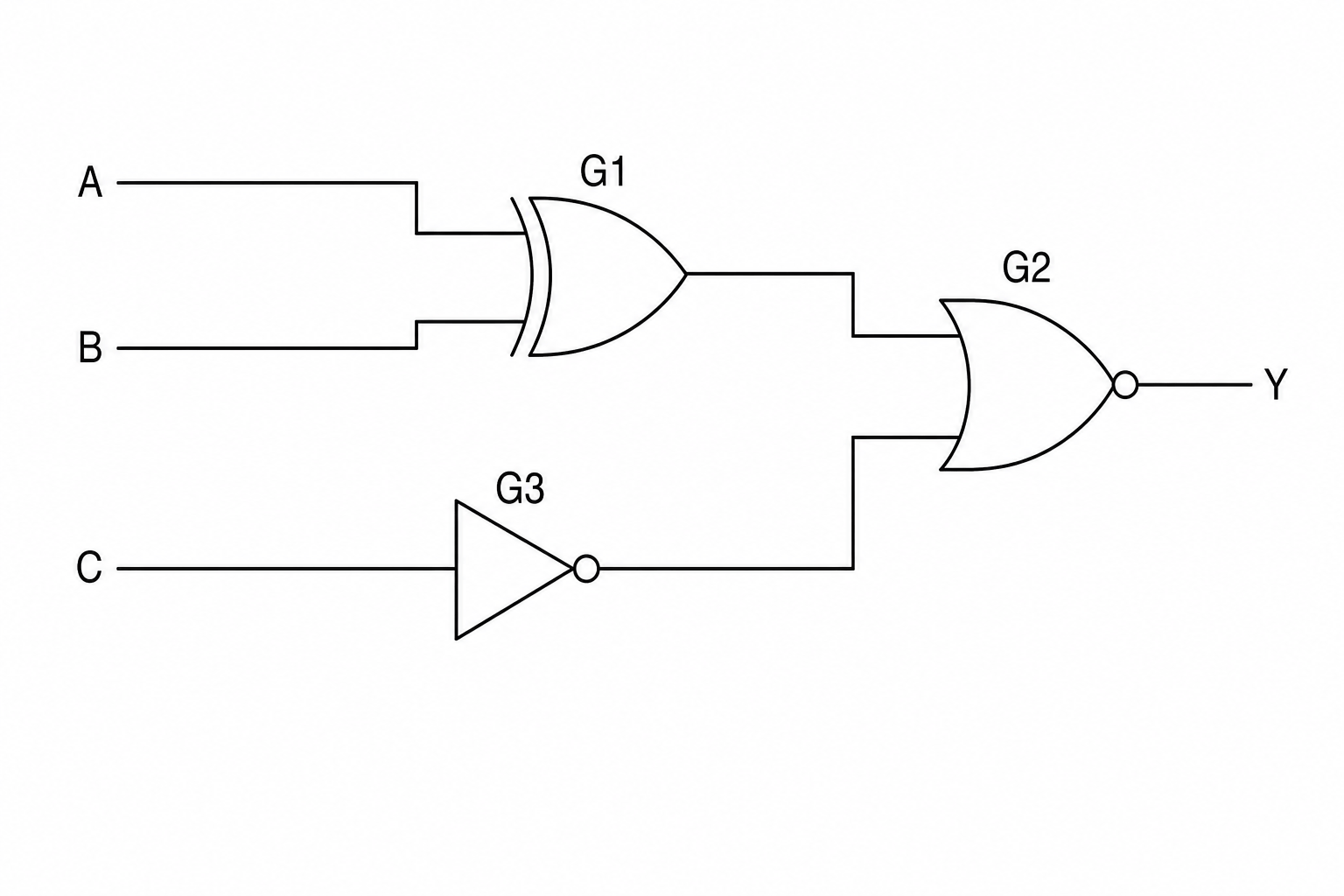

State the type of logic gate labelled G2 G_2\,G2​ in the safety-critical control circuit shown in Figure 1.

Figure 1: Safety-critical control circuit

[1]

Boolean logic Questions

Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
