A secure laboratory door release system is being designed to control an electronic door lock.

The system has two entry authentication devices: a primary keycard scanner, $K_1$ , and a backup numeric keypad, $K_2$ . Each outputs a 1 if successfully activated. The door should unlock if either of these devices is activated.
The door must only unlock if an emergency lockdown switch, $L$ , is NOT active (meaning $L\,$ outputs a 0 when not active, and 1 when active).
The output to release/unlock the door is $D$ .

Complete the logic circuit for this system by drawing or identifying the correct gates and connections.

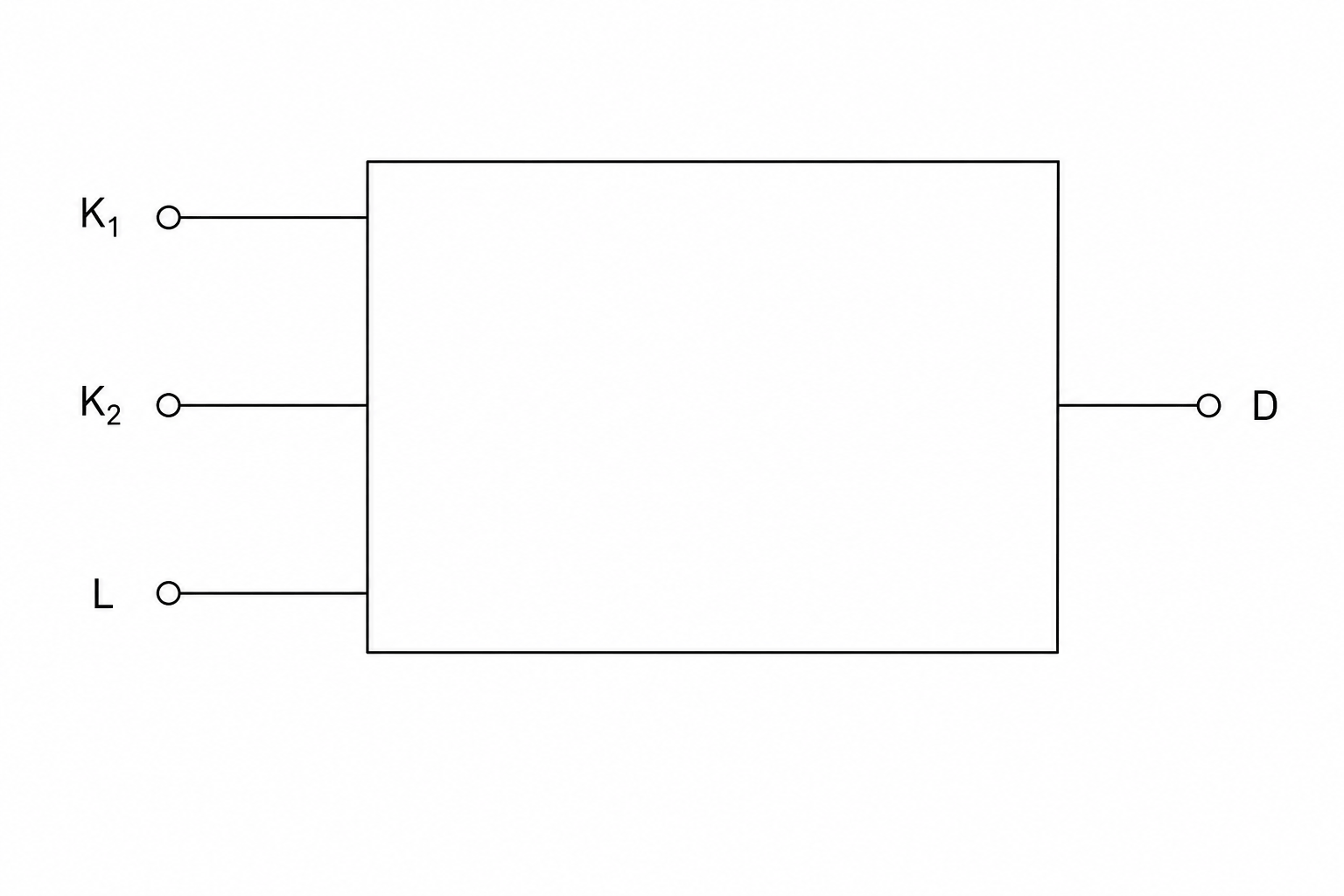

A logic circuit template. On the left side, there are three input terminals labeled K_1, K_2, and L. On the right side, there is one output terminal labeled D. In the center is a blank area for drawing logic gates and connecting wires.
