Question 95

A student investigated the rate of reaction between zinc granules and dilute sulfuric acid. The volume of hydrogen gas released was measured at regular intervals.

Their results are shown in the table below:

Time in secondsVolume of gas in cm3\text{cm}^3cm3
00
2018
4030
6038
8043
10045
12045

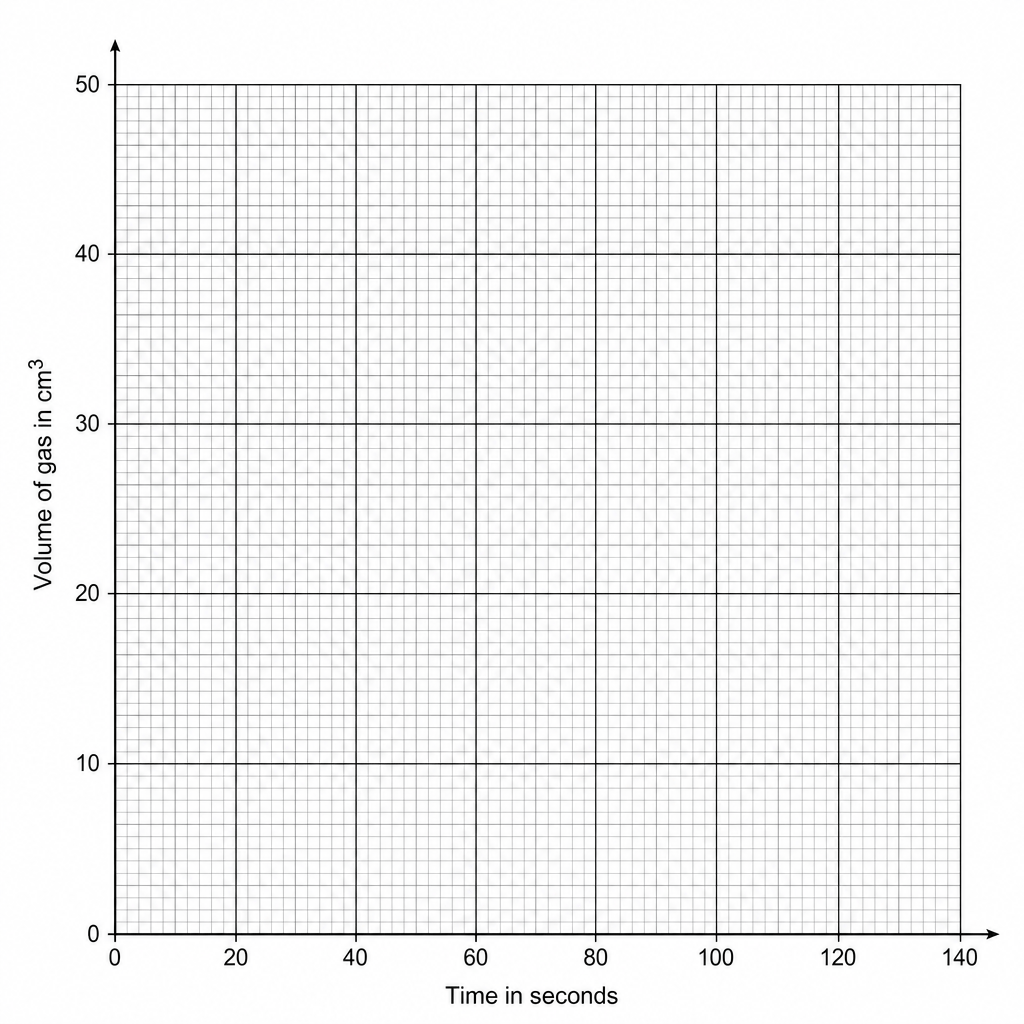

On the grid, plot the results shown in the table and draw a curve of best fit. A blank graph grid. The x-axis is labeled 'Time in seconds' and ranges from 0 to 140 with major grid lines every 20 units. The y-axis is labeled 'Volume of gas in cm³' and ranges from 0 to 50 with major grid lines every 10 units and minor grid squares representing 1 cm³ each.

[3]
