A student investigated the rate of reaction between calcium carbonate and excess dilute hydrochloric acid at 25∘C25^\circ\text{C}25∘C. They measured the volume of carbon dioxide gas produced over 200 seconds200\text{ seconds}200 seconds.

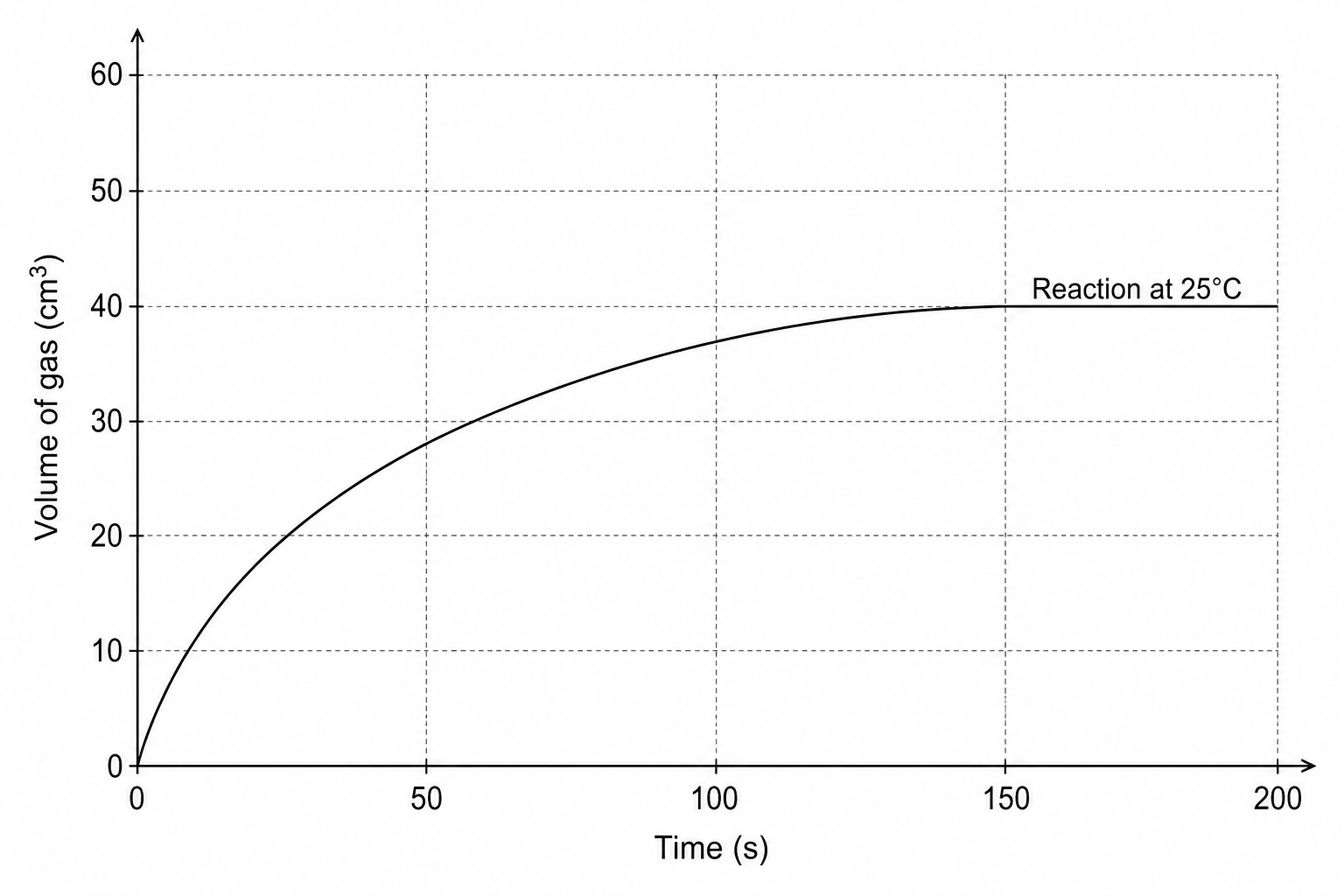

The results for the reaction at 25∘C25^\circ\text{C}25∘C are shown in the graph below.
The experiment was repeated using the same mass of calcium carbonate and the same volume and concentration of hydrochloric acid, but at a temperature of 40∘C40^\circ\text{C}40∘C. All other variables were kept constant.
Sketch, on the graph, the curve you would expect for this experiment at 40∘C40^\circ\text{C}40∘C.
