Question 25
Medium

A biomedical engineer is testing the elastic properties of a newly developed synthetic ligament fiber for reconstructive surgery.

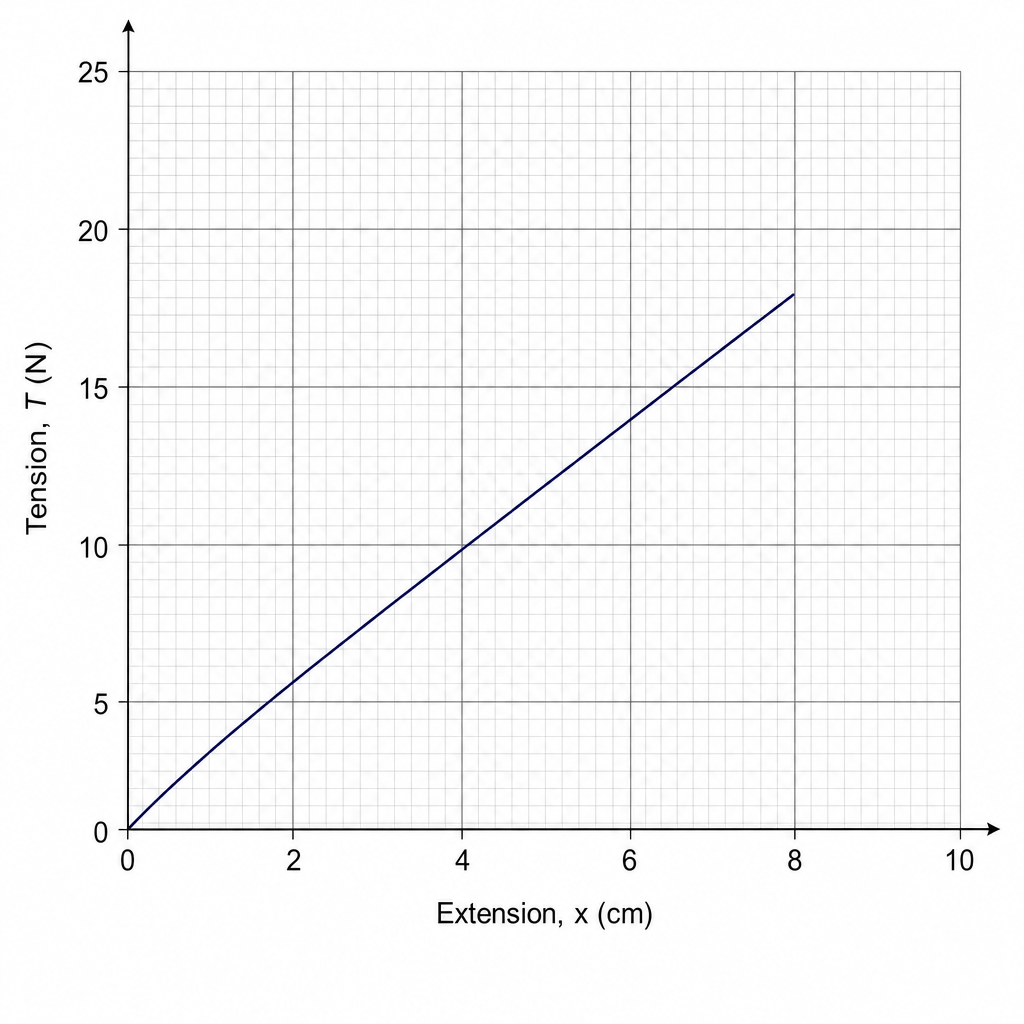

The engineer subjects a sample of the fiber to various tensile forces and records the resulting extension. The graph below displays the results of the tension test within the fiber's elastic region.

Tension-Extension Graph

Calculate the stiffness (spring constant) of the synthetic ligament fiber in N m−1\text{N}\,\text{m}^{-1}Nm−1.

[3]
