Question 23
Medium

Four uniform horizontal beams, A, B, C, and D, are each supported by a central pivot. Different downward forces are applied at specific distances from the pivots, as shown in the diagram below.

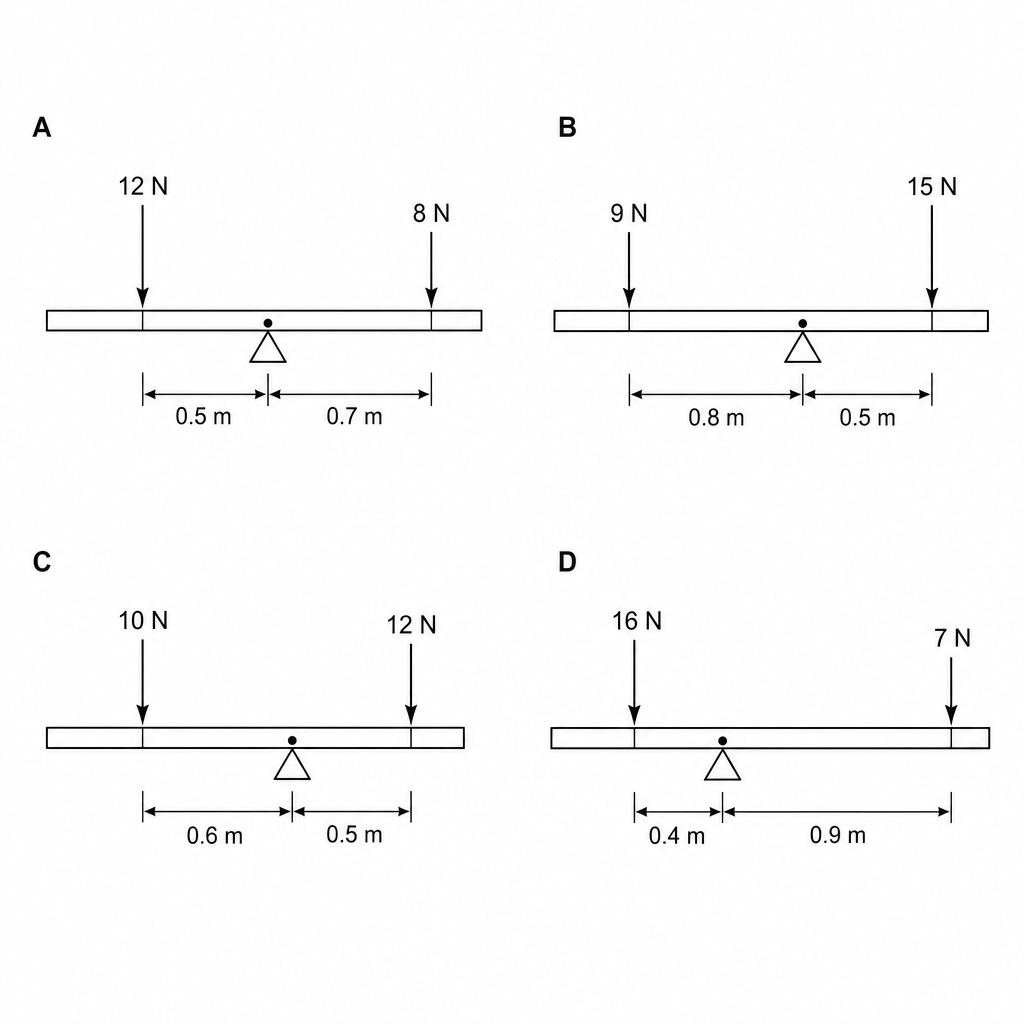

Beams A, B, C, and D with forces and distances

Which beam will experience a net clockwise moment?

Beam A

Beam B

Beam C

Beam D
