Question 16
Medium

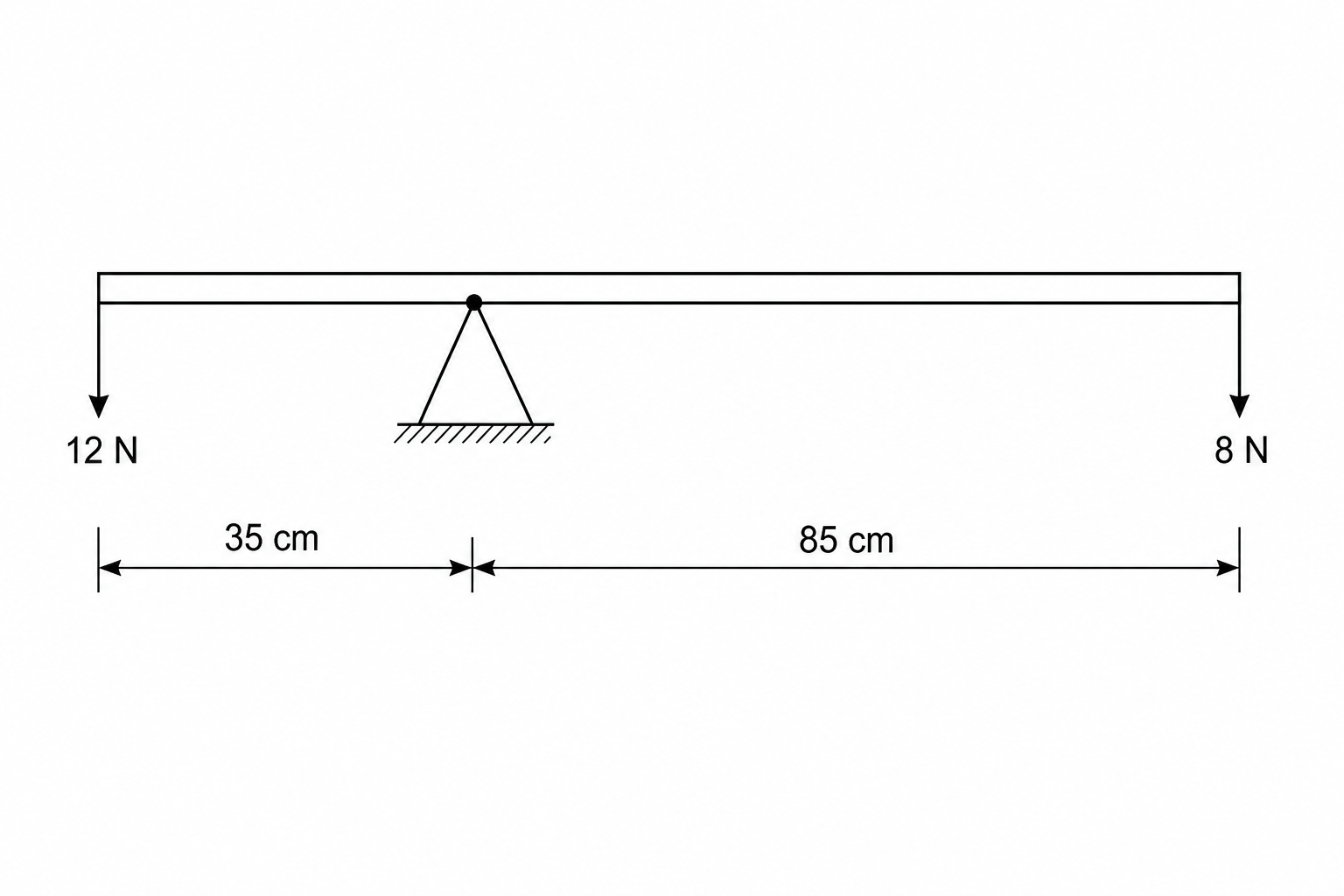

A student sets up a balance using a light horizontal beam and a pivot as shown in the diagram.

A horizontal beam pivoted 35 cm from the left and 85 cm from the right with a 12 N downward force on the left and an 8 N downward force on the right.

Which statement is correct?

2.6 N m2.6\text{ N m}2.6 N m anticlockwise

2.6 N m2.6\text{ N m}2.6 N m clockwise

11.0 N m11.0\text{ N m}11.0 N m clockwise

260 N m260\text{ N m}260 N m clockwise
