Question 33
Medium

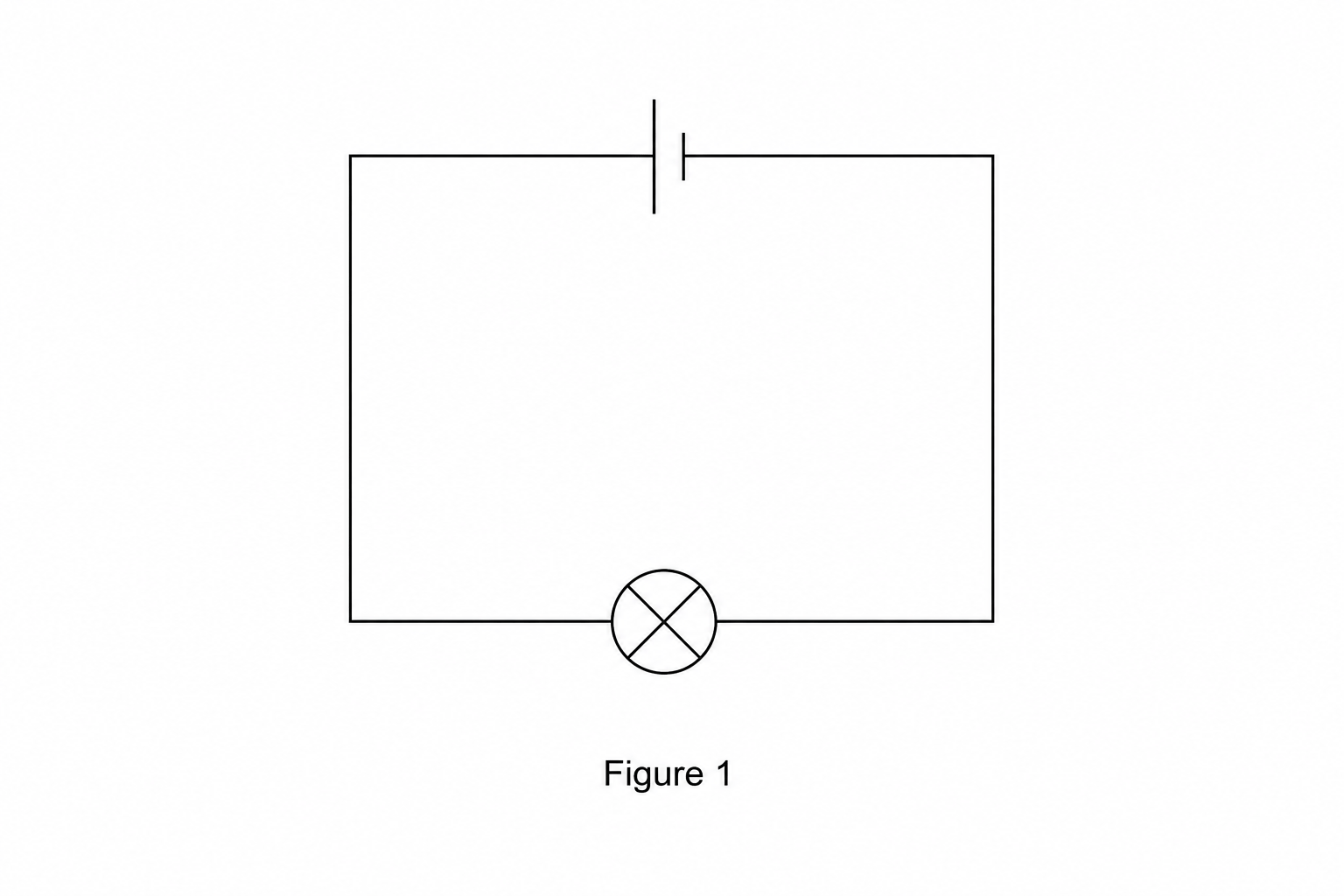

A student sets up an electrical circuit with a single lamp connected to a d.c. power supply, as shown in Figure 1.

Figure 1: Schematic circuit diagram showing a single rectangular loop with a d.c. power supply at the top and one lamp, represented by a circle with an X inside, at the bottom.

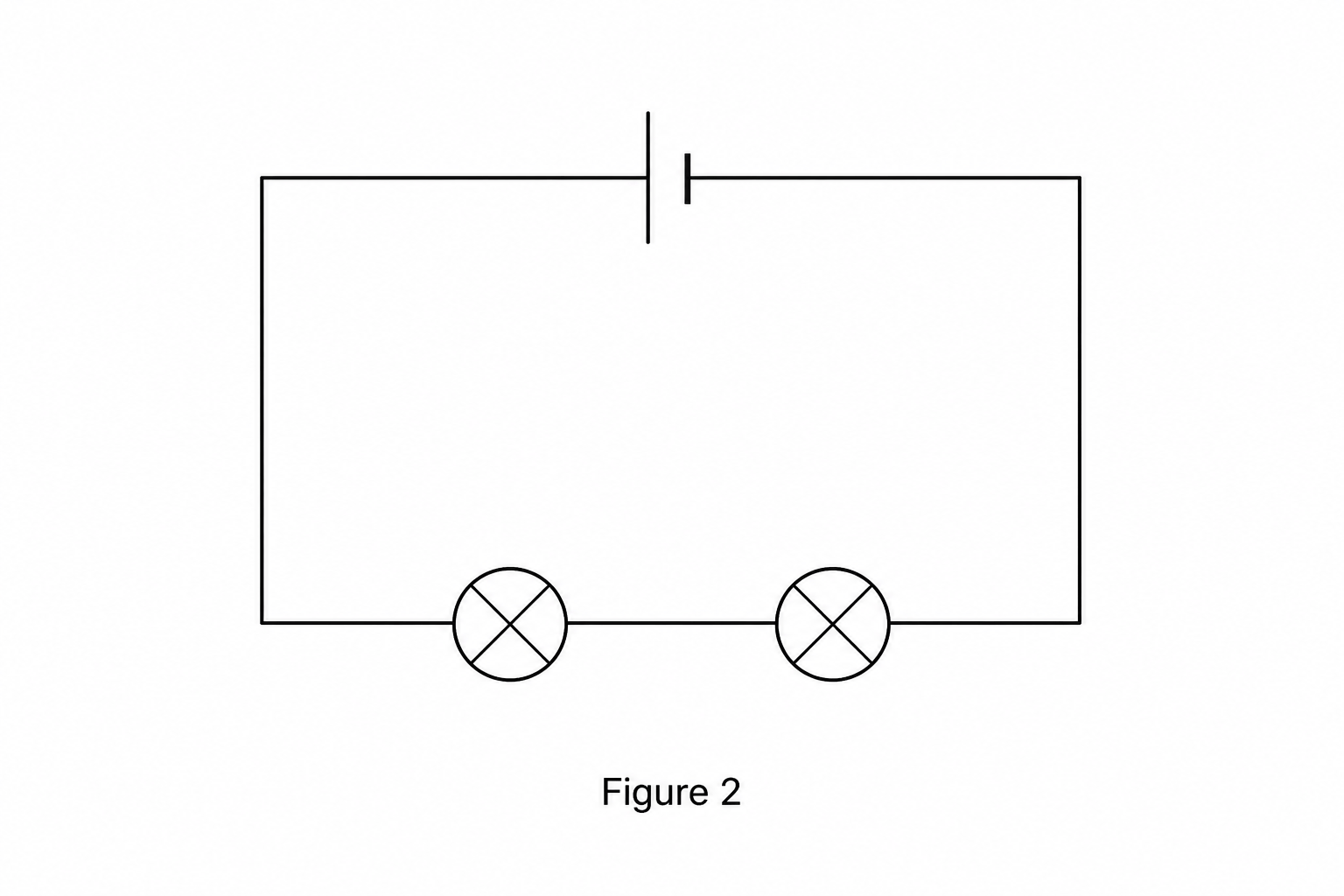

The student then adds a second, identical lamp in series, as shown in Figure 2. The power supply maintains the exact same potential difference as before.

Figure 2: Schematic circuit diagram showing a rectangular loop with the same d.c. power supply connected in series with two identical lamps, each represented by a circle with an X.

State and explain how the brightness of one of the lamps in Figure 2 compares to the brightness of the single lamp in Figure 1.

[3]
