Question 48
Easy

The Von Neumann architecture uses three system buses to transfer data, memory addresses, and control signals between the CPU and Main Memory.

Complete the diagram by identifying:

  • the names of the two unlabeled buses, P and Q
  • the direction of the arrow at connection R to show the correct flow of address signals

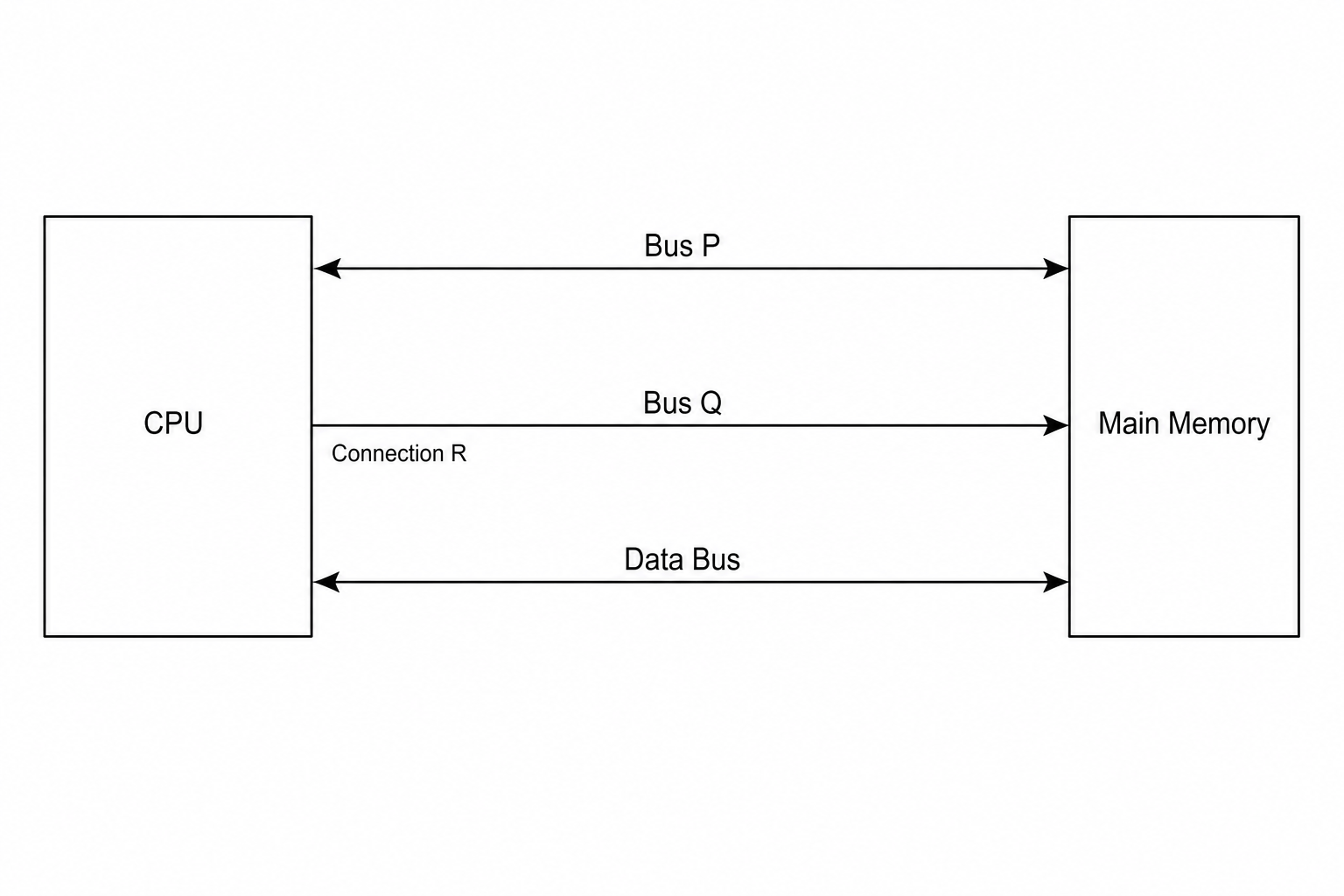

System bus architecture diagram showing CPU on the left, Main Memory on the right, Bus P, Bus Q with connection R, and the Data Bus.

[3]
