Question 42
Easy

The Von Neumann architecture uses three system buses to transfer data, memory addresses, and control signals between the CPU and Main Memory.

Complete the diagram by identifying:

  • the names of the two unlabeled buses, Bus P and Bus Q
  • the direction of the arrow at connection R to show the correct flow of address signals

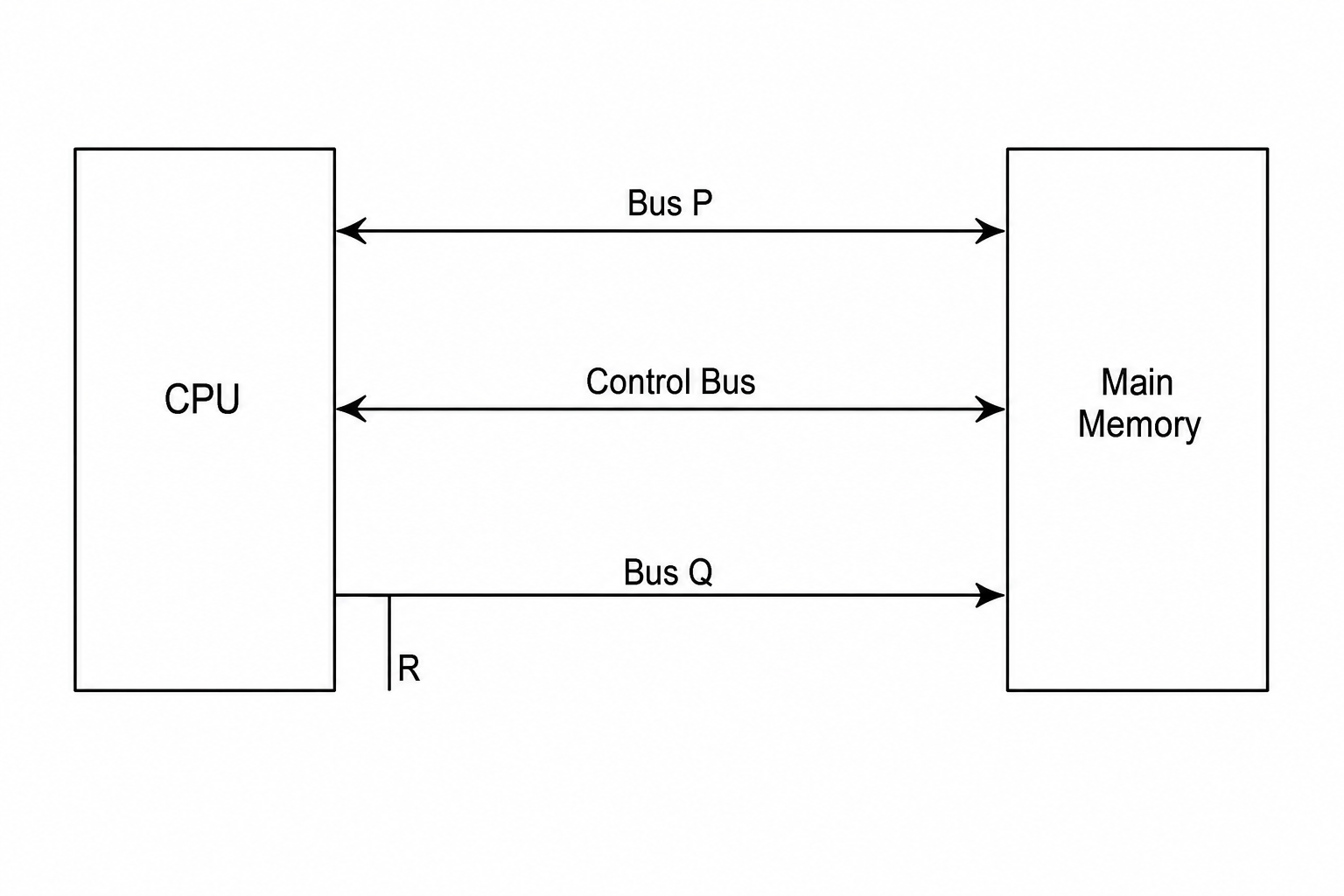

A system bus diagram showing CPU on the left and Main Memory on the right, with Bus P, Control Bus, Bus Q, and connection line R.

[3]
