Question 33
Medium

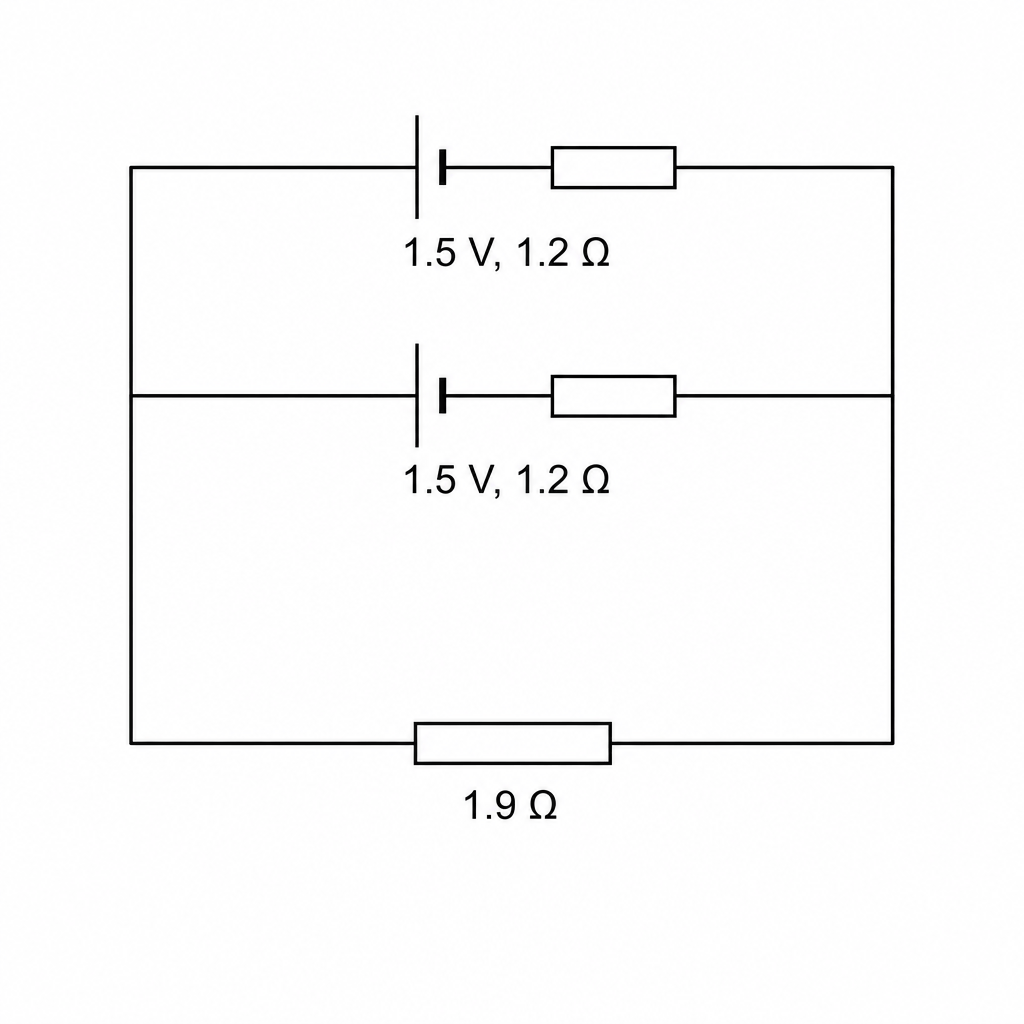

Two identical batteries each of emf 1.5 V and internal resistance 1.2 Ω are connected in parallel. A 1.9 Ω resistor is connected in parallel with this combination as shown in the diagram.

Circuit diagram

What is the current in the 1.9 Ω resistor?

0.35 A0.35\text{ A}0.35 A

0.48 A0.48\text{ A}0.48 A

0.60 A0.60\text{ A}0.60 A

1.20 A1.20\text{ A}1.20 A
