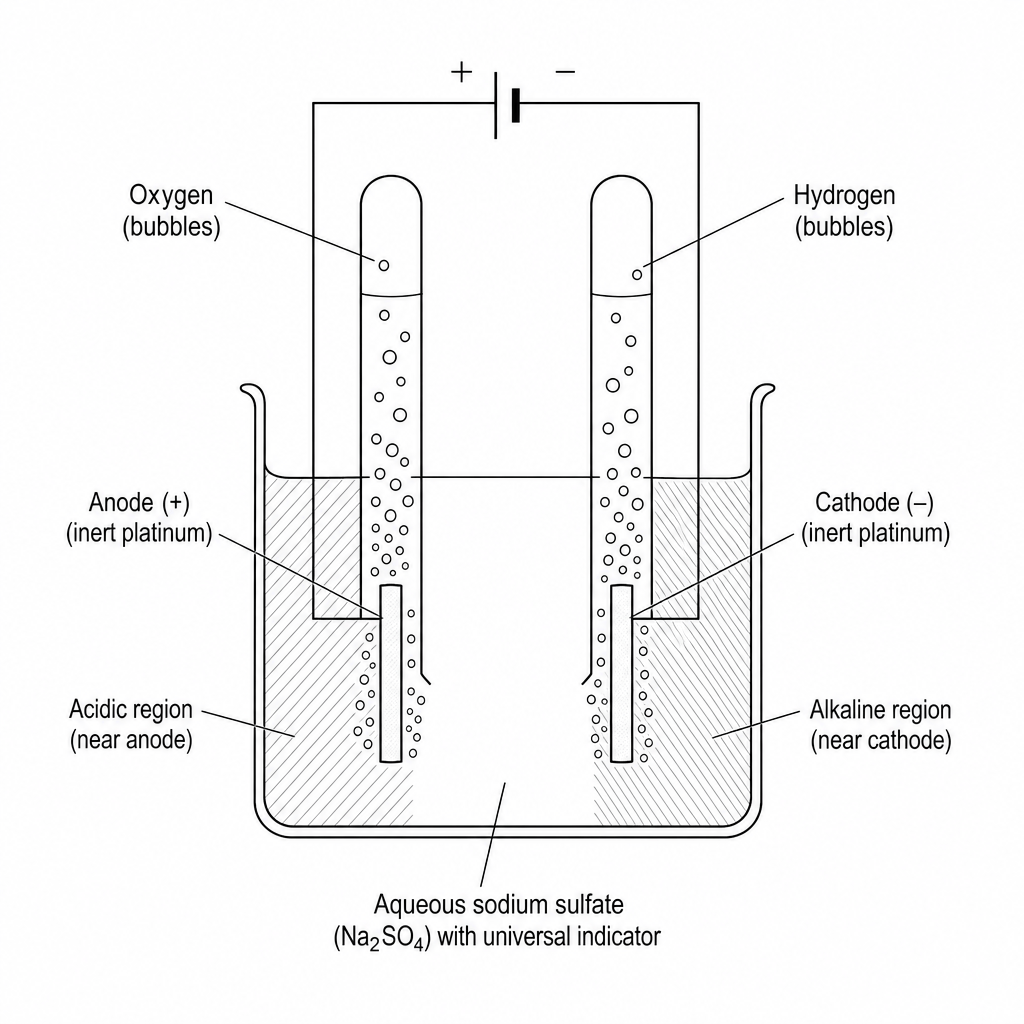

An aqueous solution of sodium sulfate, Na2SO4(aq)\text{Na}_2\text{SO}_4(\text{aq})Na2SO4(aq), is electrolysed using inert platinum electrodes in the presence of a universal indicator. Initially, the solution is neutral (pH 7\text{pH } 7pH 7) and green.
Which of the following correctly describes the local colour changes of the universal indicator and the ratio of the volume of gas collected at the cathode to that at the anode?
Anode region: Red; Cathode region: Blue-violet; Volume ratio (Cathode : Anode) = 2:12 : 12:1
Anode region: Red; Cathode region: Blue-violet; Volume ratio (Cathode : Anode) = 1:21 : 21:2
Anode region: Blue-violet; Cathode region: Red; Volume ratio (Cathode : Anode) = 2:12 : 12:1
Anode region: Red; Cathode region: Blue-violet; Volume ratio (Cathode : Anode) = 1:11 : 11:1
