Question 34
Medium

An undamped oscillator executes simple harmonic motion (SHM).

Which of the following graphs correctly represents the variation of its potential energy EpE_{\text{p}}Ep​ against its kinetic energy EkE_{\text{k}}Ek​ during its motion?

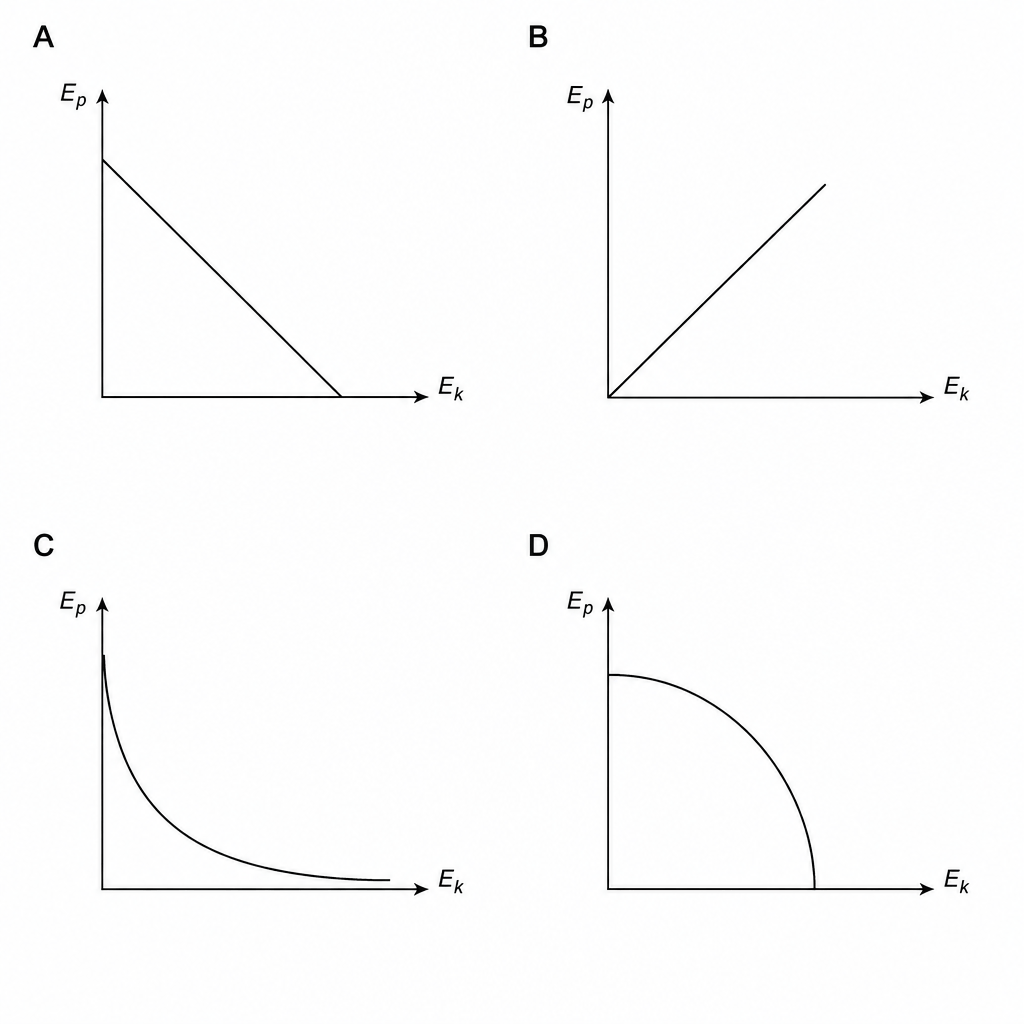

Potential Energy vs Kinetic Energy Graphs

Graph A

Graph B

Graph C

Graph D
