Energy and voltage in circuits

EasyMediumHard
1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859606162636465666768697071727374757677
Question 24
Medium

A student investigates how the resistance of a specialized metal wire coil varies with temperature. The student heats a beaker of paraffin oil containing the wire coil and a thermometer, and measures the potential difference across the coil for a constant current.

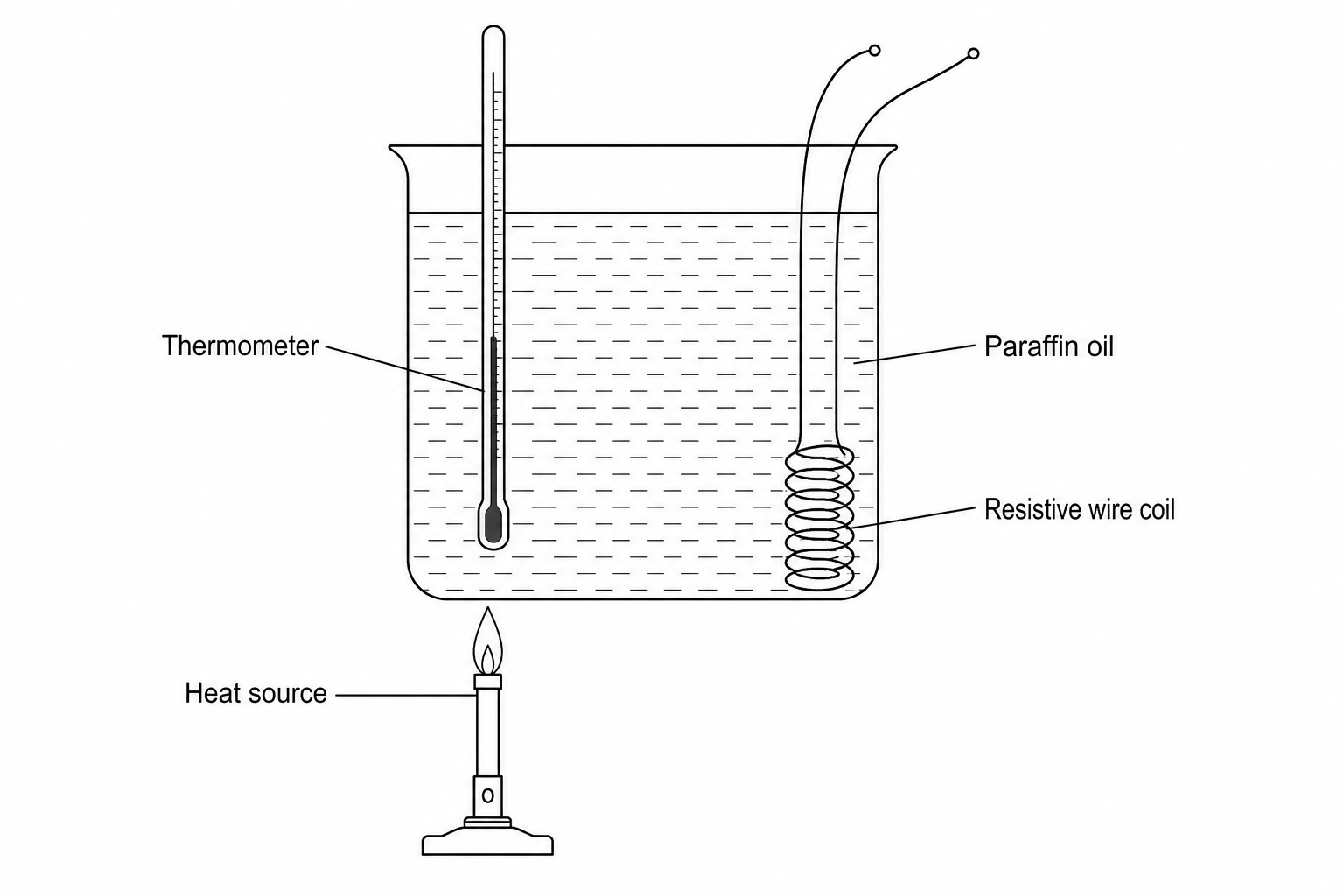

The diagram shows the student's initial apparatus setup:

Apparatus setup

a.

Suggest three changes to this experimental setup that would improve the accuracy of the temperature measurement of the wire coil.

[3]
b.

What instrument should the student use to measure the potential difference across the wire coil?

[1]
c.

State the equation linking potential difference (voltage), current, and resistance.

[1]
d.

At a particular temperature, the wire coil has a resistance of 250 Ω250\ \Omega250 Ω. If the potential difference across it is 6.0 V6.0\text{ V}6.0 V, calculate the current in the coil in milliamperes (mA\text{mA}mA).

[3]
