Question 13
Medium

The table shows the specific heat capacities of different materials:

MaterialSpecific heat capacity (J/kg∘C\text{J/kg}^\circ\text{C}J/kg∘C)
Lead130
Silver233
Copper385
Iron450
Steel490
Granite790

A scientist heats an unknown substance from a solid to a liquid.

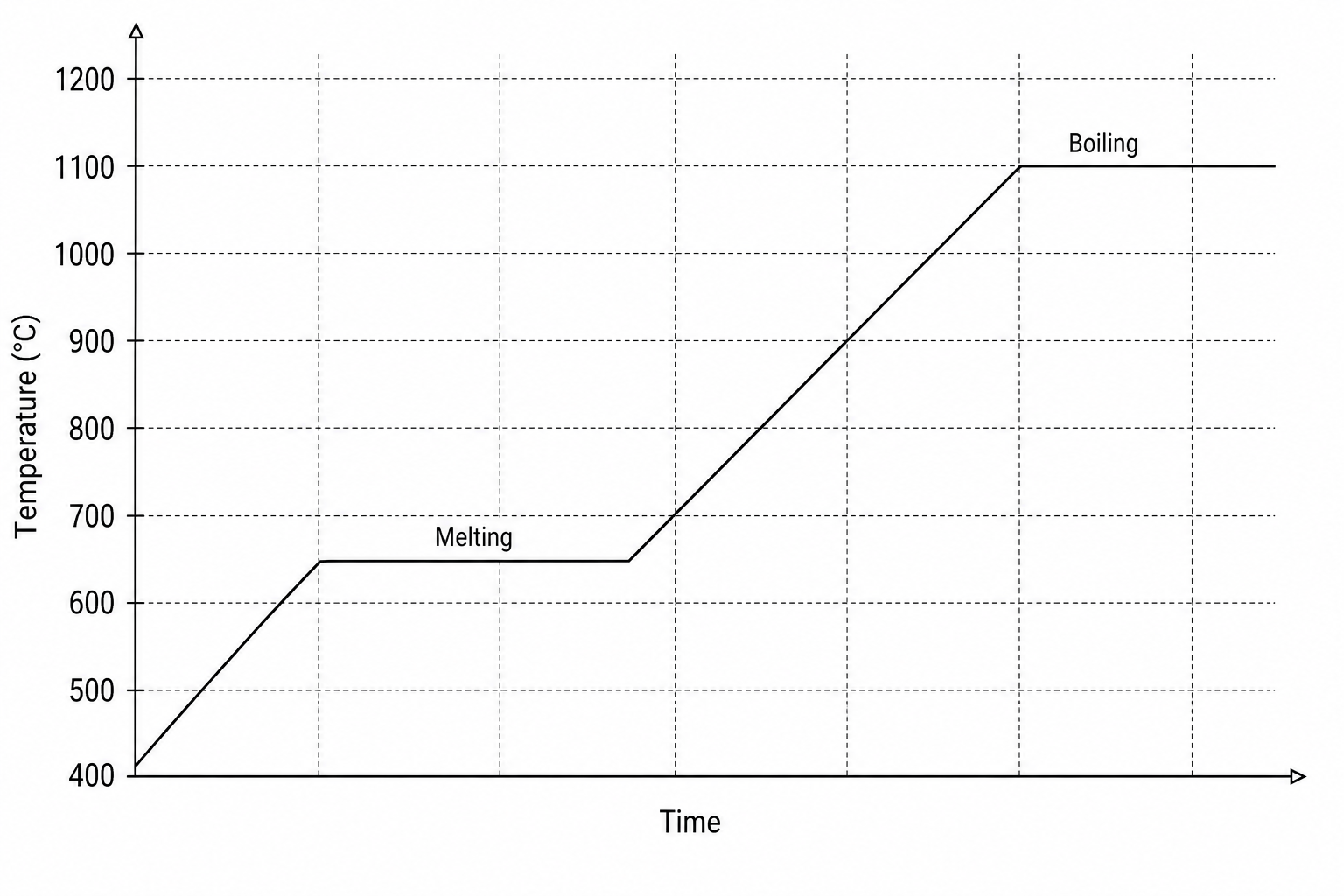

The graph shows how the temperature of the substance varies with time.

A temperature-time graph for an unknown substance heated at a constant rate. The y-axis is labeled "Temperature (°C)" and goes from 400 to 1200 with major grid lines every 100°C. The x-axis is labeled "Time". The curve has a horizontal plateau labeled "Melting" at 650°C. From this plateau, the temperature increases in a straight line up to another horizontal plateau labeled "Boiling" at 1100°C.

The scientist has 2.0 kg2.0\text{ kg}2.0 kg of the substance and records that it takes 405 kJ405\text{ kJ}405 kJ of energy to increase its temperature from the lowest to the highest temperature in the liquid state.

a.

Use the graph to calculate the specific heat capacity of the substance. Suggest what material it could be from the table.

[5]
b.

Suggest two reasons why the scientist cannot be certain that the substance has been identified correctly.

[2]
