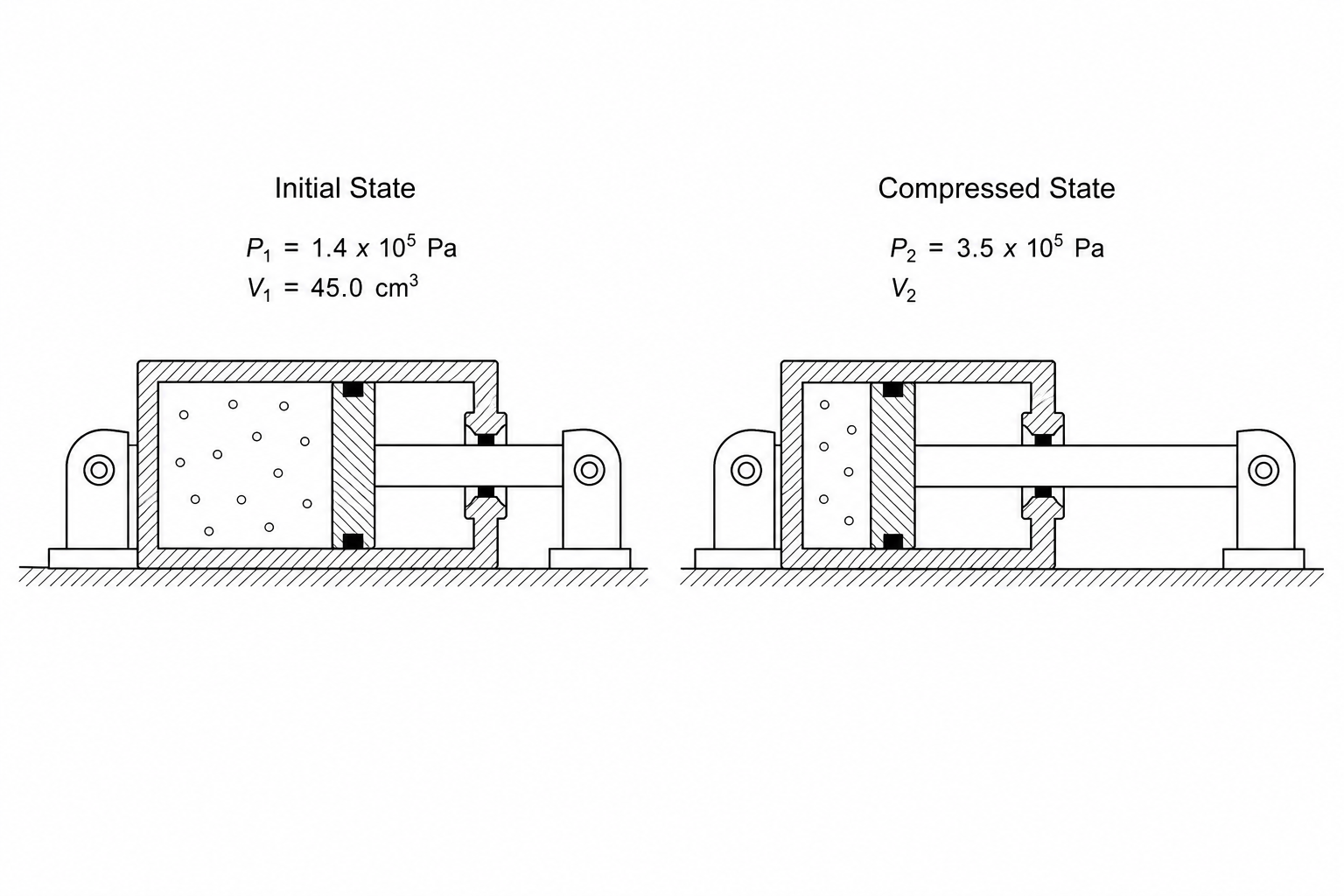

A pneumatic cylinder in an automated manufacturing robotic arm seals a volume of air to act as a gas spring, as shown in the diagram below.
Initial measurements of the sealed cylinder are:
- pressure (p1)=1.4×105 Pa\text{pressure } (p_1) = 1.4 \times 10^5 \text{ Pa}pressure (p1)=1.4×105 Pa
- volume (V1)=45.0 cm3\text{volume } (V_1) = 45.0 \text{ cm}^3volume (V1)=45.0 cm3
Calculate the volume of the gas,
V2 V_2 V2, when the piston is compressed slowly so that the pressure increases to
3.5×105 Pa 3.5 \times 10^5 \text{ Pa} 3.5×105 Pa, assuming the temperature remains constant.
Explain why compressing the piston very quickly would cause the temperature of the gas to increase.
