Question 10
HA student investigates how the pressure of a fixed mass of gas depends on its volume at constant temperature. Figure 1 shows a graph of the student's results.

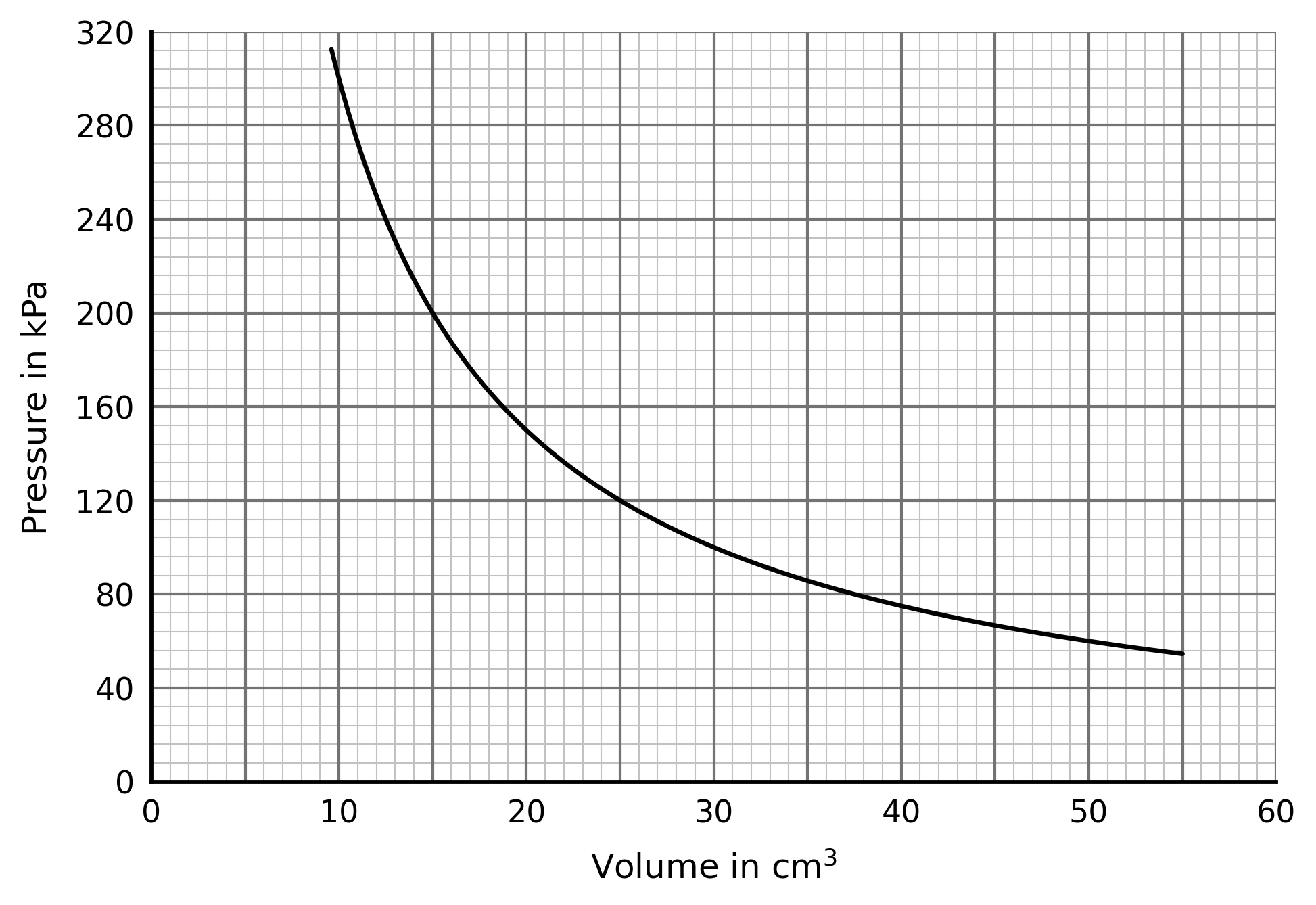

Figure: a graph of the pressure of a fixed mass of gas against its volume at constant temperature
a.[1]
Use Figure 1 to determine the pressure of the gas when the volume of the gas is 25 cm3.
b.[3]
Determine the value of pressure×volume\text{pressure} \times \text{volume}pressure×volume for the gas in Figure 1. Give the unit.
c.[2]
Explain why the graph is a curve and not a straight line.
3.3 Particle model and pressure Questions
40 exam-style questions on AQA GCSE Physics 3.3 Particle model and pressure, covering 3.3.1 Particle motion in gases, 3.3.2 Pressure in gases, and 3.3.3 Increasing the pressure of a gas (HT only). Each one has a worked solution and a mark scheme showing where the marks go.
