An electric deep fryer was switched on.

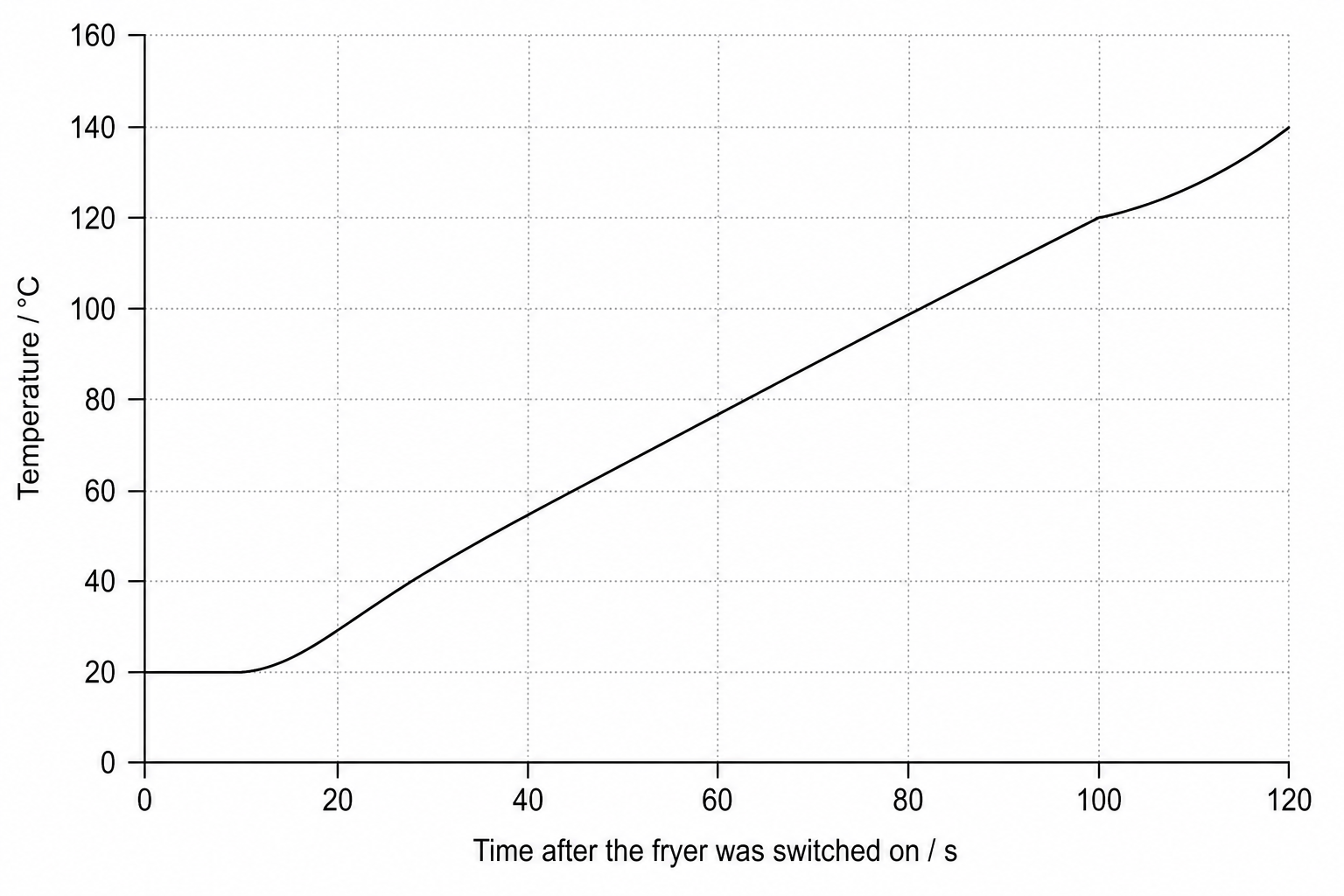

Figure 1 shows how the temperature of the cooking oil inside the fryer changed over time.
When the fryer was switched on, the temperature of the oil did not immediately start to increase.
Suggest one reason why.
The energy transferred to the oil in 120 seconds was 190 000 J190\,000\text{ J}190000 J.
Given that the specific heat capacity of cooking oil is 2000 J/kg ∘C2000\text{ J/kg }^\circ\text{C}2000 J/kg ∘C.
Determine the mass of oil in the fryer. Use Figure 1.
Give your answer to 2 significant figures.
The straight section of the line in Figure 1 can be used to calculate the useful power output of the fryer.
Explain how.
