9Medium
0/3

An underwater research drone (ROV) is traveling in a straight horizontal line to the right at a constant depth. The horizontal forces acting on the drone are shown in the diagram below:

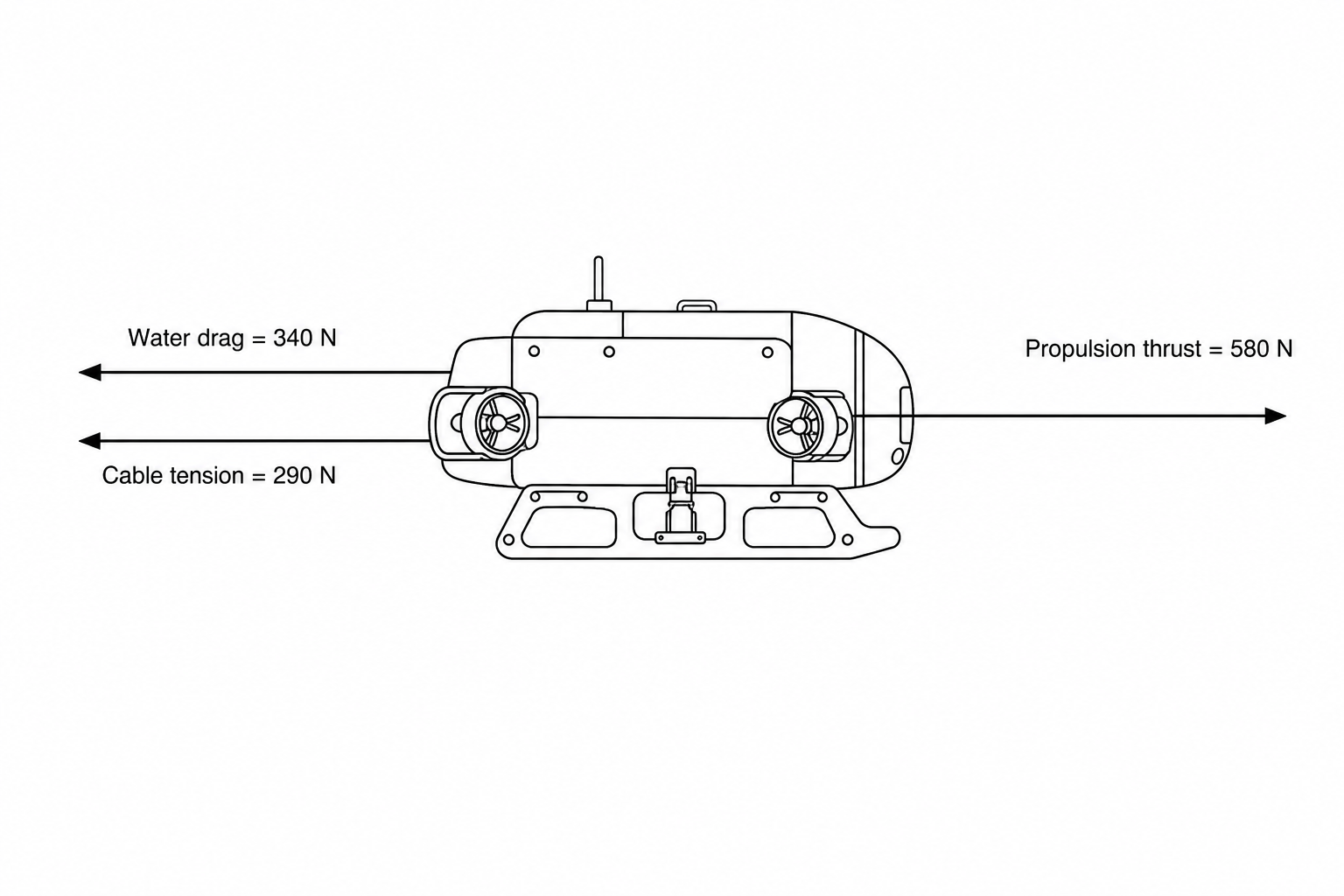

An underwater drone traveling to the right. A horizontal arrow pointing to the right represents the forward thrust, labeled 'Propulsion thrust = 580 N'. Two horizontal arrows pointing to the left represent the resistive forces: one labeled 'Water drag = 340 N' and the other labeled 'Cable tension = 290 N'.

a.

Determine the magnitude of the resultant horizontal force on the drone.

[2]
b.

Describe the motion of the drone while these forces are acting.

[1]

Forces and their interactions Questions

Practise AQA GCSE Physics Forces and their interactions with exam-style questions for Foundation and Higher tier. 13 questions covering Scalar and vector quantities, Contact and non-contact forces, Gravity, and Resultant forces, matched to the AQA GCSE Physics (8463) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
