An electric delivery van is traveling in a straight line along a flat road. The horizontal forces acting on the van are shown in the diagram below:

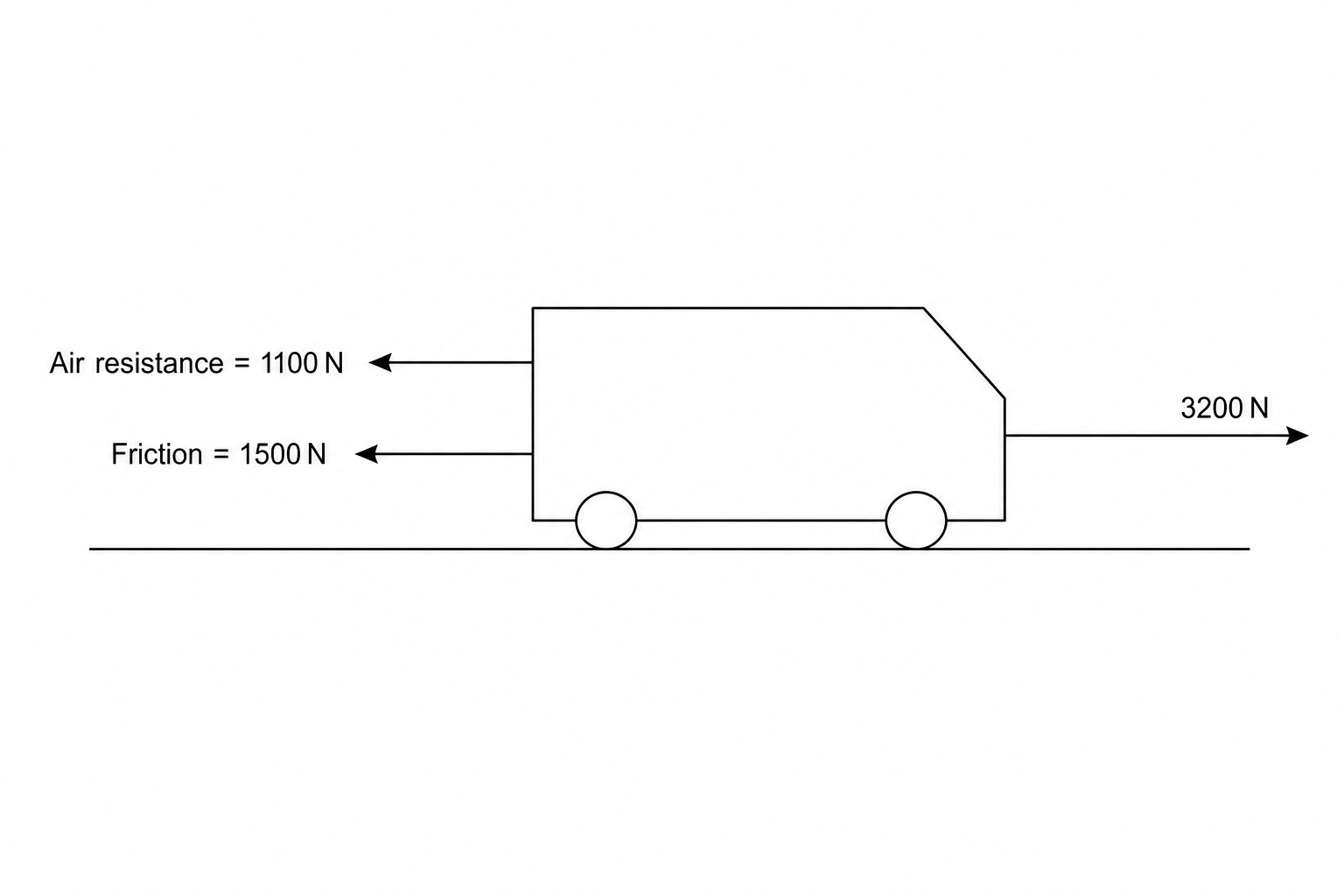

A diagram of a delivery van traveling to the right. A horizontal arrow pointing to the right represents the forward driving force from the motor, labeled 3200 N. Two horizontal arrows pointing to the left represent the resistive forces: one labeled 'Air resistance = 1100 N' and the other labeled 'Friction = 1500 N'.

a.

Determine the magnitude of the resultant horizontal force on the van.

[2]
b.

Describe the motion of the van while these forces are acting.

[2]

Forces and their interactions Questions

Practise AQA GCSE Physics Forces and their interactions with exam-style questions for Foundation and Higher tier. 13 questions covering Scalar and vector quantities, Contact and non-contact forces, Gravity, and Resultant forces, matched to the AQA GCSE Physics (8463) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
