An impure liquid hydrocarbon fuel containing sulfur impurities is burned using the apparatus shown below.

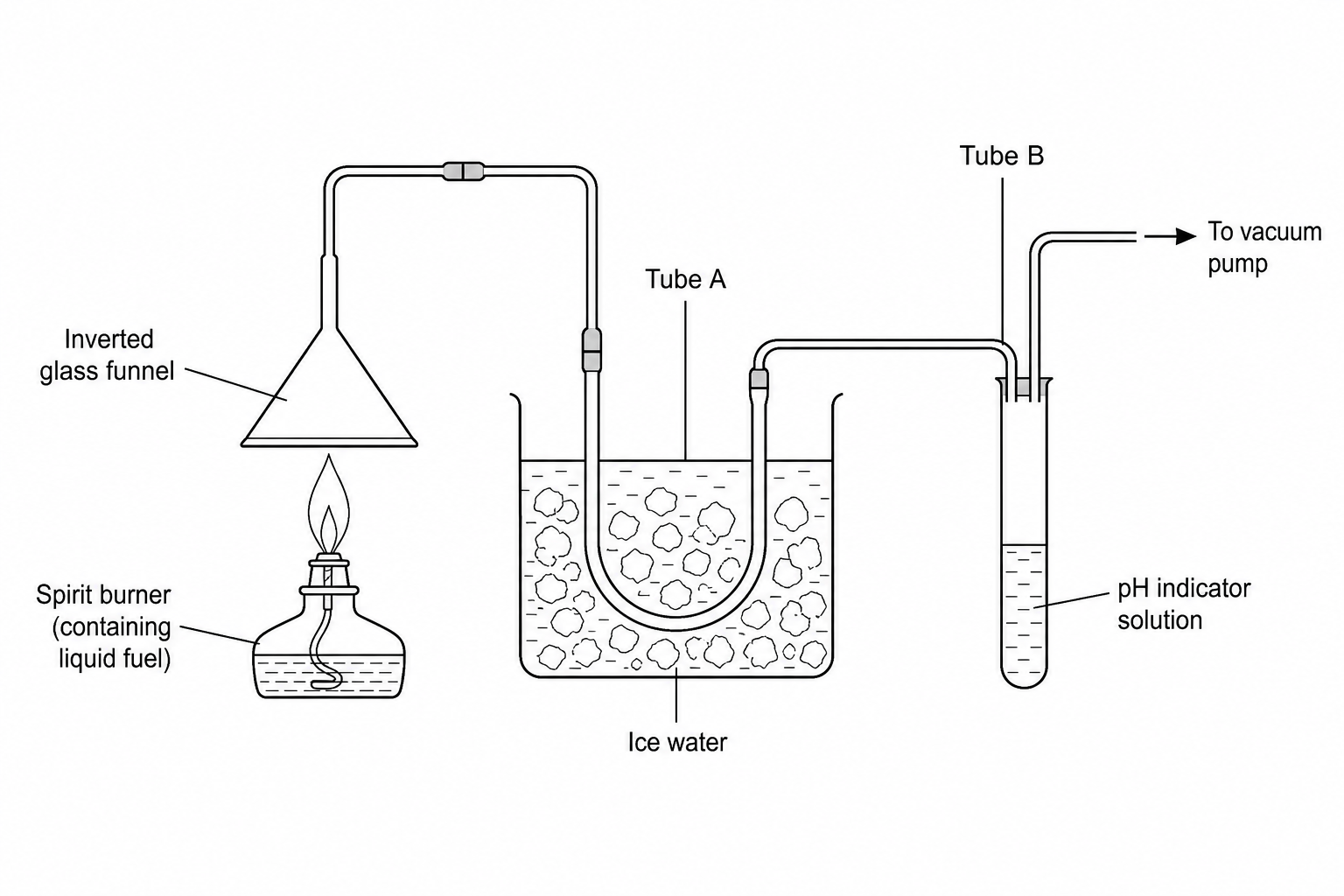

Diagram showing a spirit burner containing an impure liquid fuel positioned directly under an inverted funnel. The funnel is connected via glass tubing to a U-tube (Tube A) which is submerged in a beaker of ice water. The outlet of the U-tube connects to a test tube (Tube B) containing a pH indicator solution. The entire system is connected to a vacuum pump to draw the gases through.

When the fuel is burned, the following observations are made:

  • the funnel becomes hot to the touch
  • a colourless liquid condenses in Tube A
  • the indicator in Tube B changes colour, showing the presence of an acidic gas

Explain these three observations.

[3]
