Question 63
Easy

A student investigated the rate of respiration of germinating mung beans using the respirometer setup shown in Figure 1.

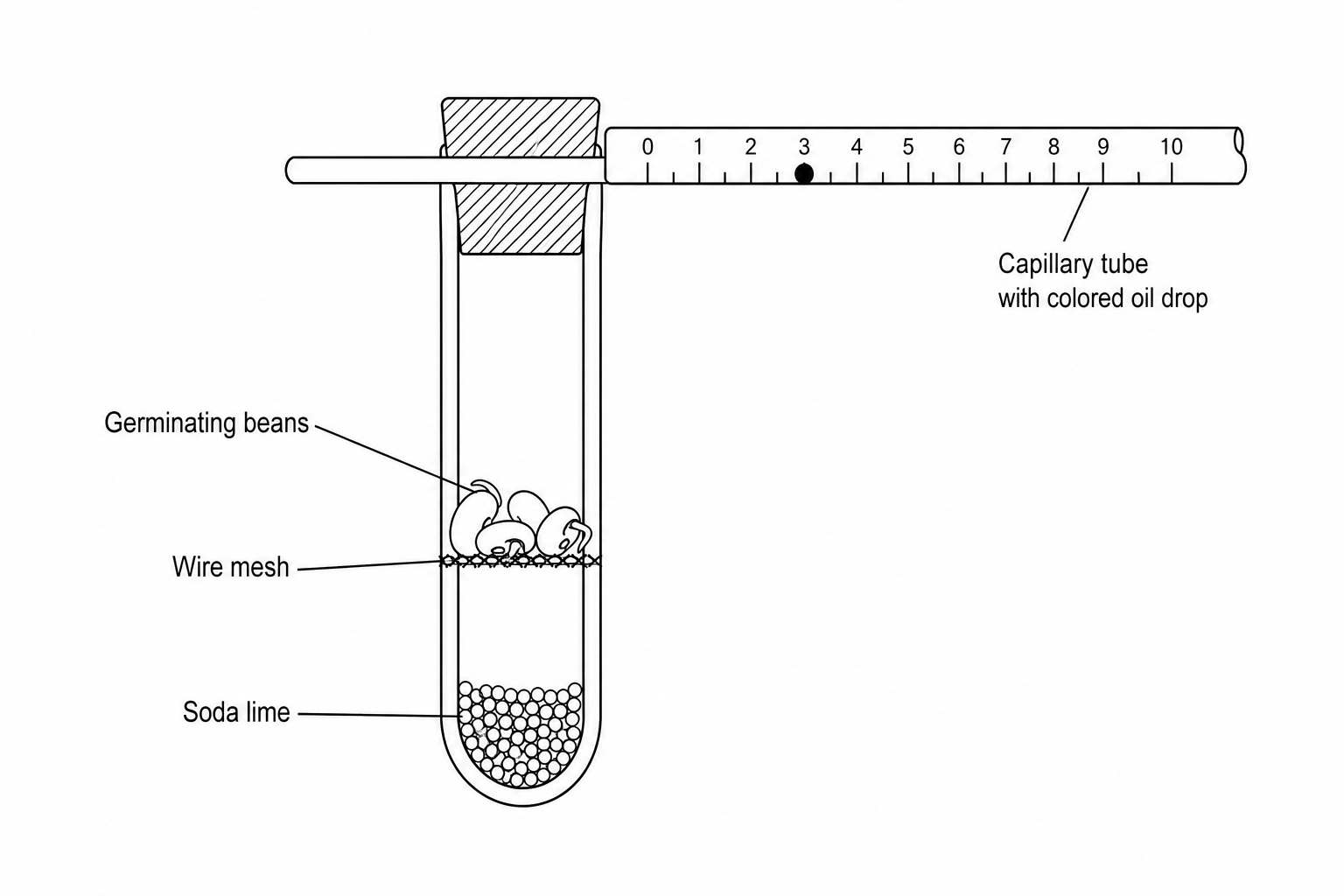

Figure 1: Schematic of a respirometer setup. A test tube contains germinating mung beans resting on a wire mesh platform. Below the platform are soda lime pellets. The tube is sealed with a rubber stopper through which a horizontal capillary tube passes. The capillary tube scale runs from 0 to 10 cm and contains a drop of colored oil used to track volume changes.

Figure 2 shows a close-up of the capillary tube scale, indicating the position of the colored liquid drop at the start (0 minutes) and after 8 minutes.

Figure 2: Close-up of capillary scale. Top scale at 'Start (0 minutes)' shows the meniscus of the colored oil drop aligned with the 0.5 cm mark. Bottom scale at 'End (8 minutes)' shows the meniscus aligned with the 4.1 cm mark.

Calculate the mean rate of respiration of the mung beans in mm per minute.

[2]
