An engineer designs an auxiliary power circuit for a robotic drone, as shown in the diagram.

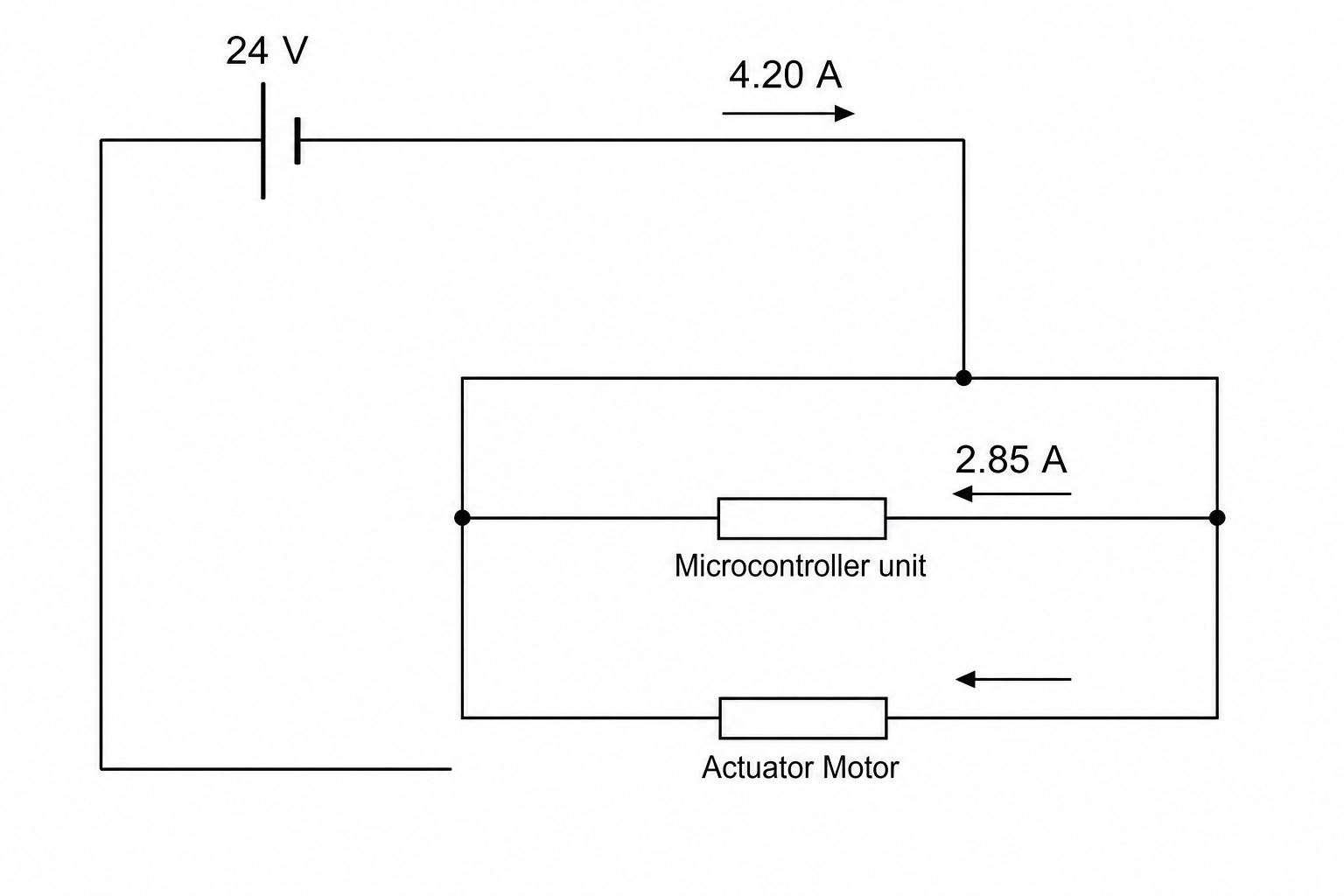

Robotic drone auxiliary power circuit with a 24 V source, splitting into parallel branches for a microcontroller unit and an actuator motor.

Determine the value of the current flowing through the actuator motor.

[2]
